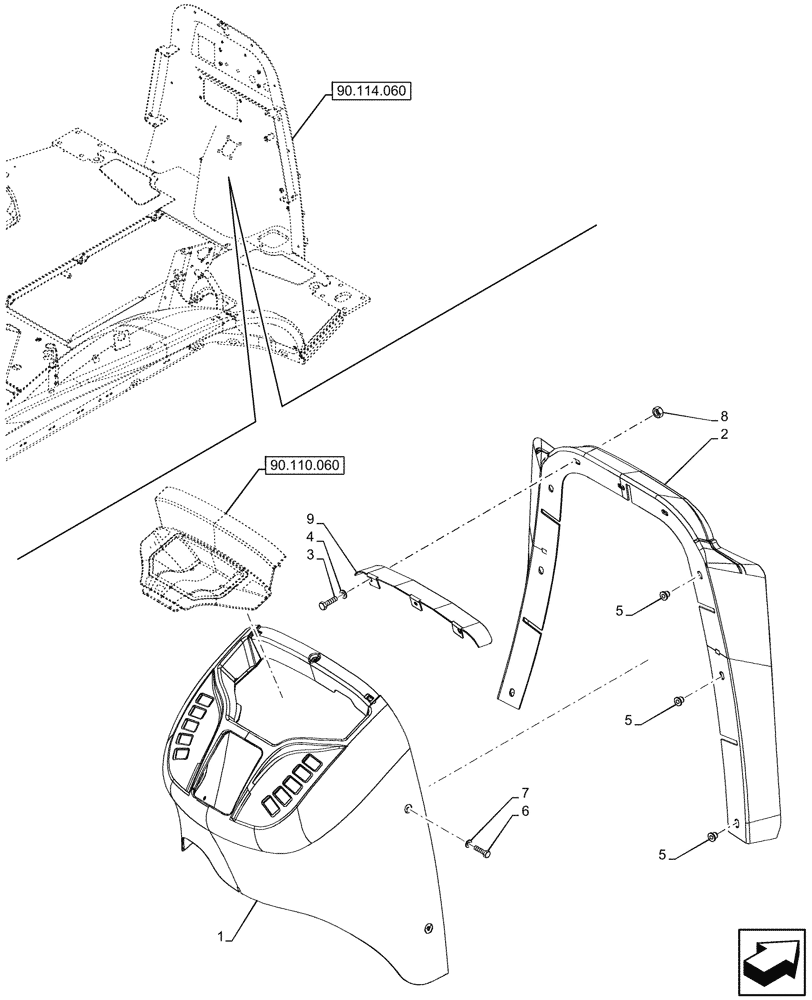

Запчасти Case 580SN (90.110.050) - VAR - 423001 - CANOPY, FRONT, CONSOLE, MALAYSIAN (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47954911

TRIM PANEL

Front Console

1шт.

2

47954927

MOLDING

Firewall

1шт.

3

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

4

495-81001

WASHER,5/16"

3шт.

5

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

6шт.

6

87310152

BOLT,M6 x 16 Full SST BLO

4шт.

7

87423817

WASHER,11mm ID x 40mm OD x 2mm Thk

4шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

9

395478A3

BRACKET

Firewall Molding Brace

1шт.
