(88.100.84[05]) - DIA KIT, STANDARD DIPPER, EXTENDABLE DIPPER, CONVERSION KIT, FOOT CONTROL

Запчасти Case 580SN (88.100.84[05]) - DIA KIT, STANDARD DIPPER, EXTENDABLE DIPPER, CONVERSION KIT, FOOT CONTROL (88) - ACCESSORIES

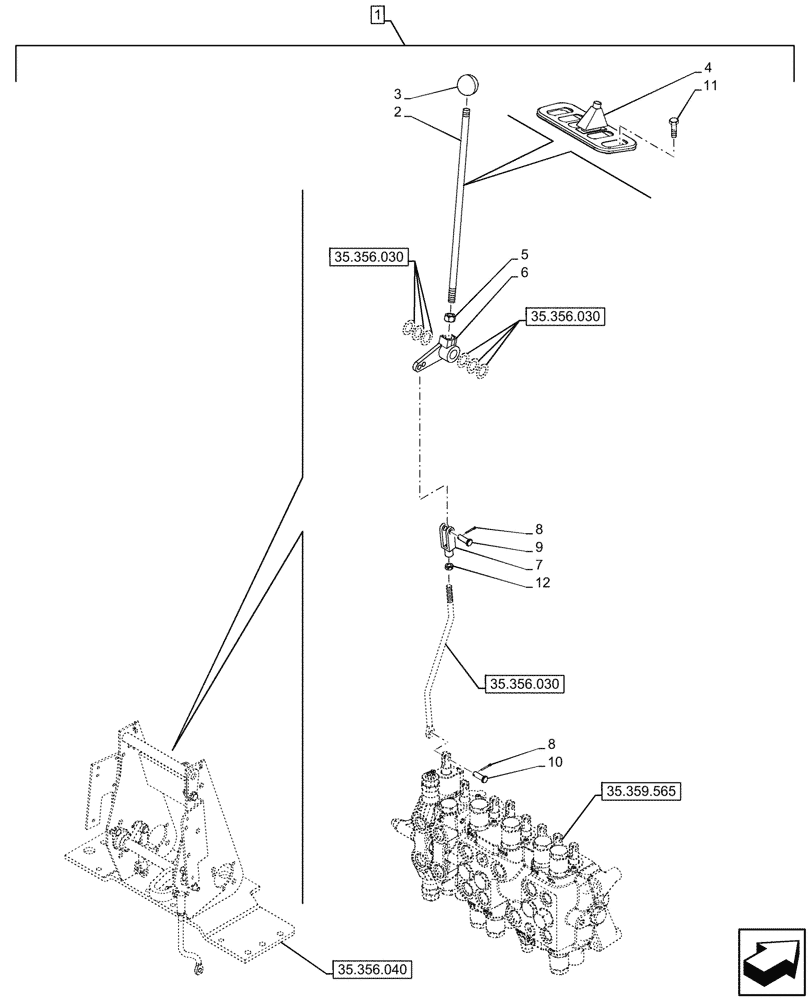

Схема запчастей Case 580SN - (88.100.84[05]) - DIA KIT, STANDARD DIPPER, EXTENDABLE DIPPER, CONVERSION KIT, FOOT CONTROL (88) - ACCESSORIES
35.359.565
10
8
3
2
7
4
5
8
12
11
6
1
9
35.356.030
35.356.030
35.356.030
35.356.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47945939

CONSTRUCTION DIA

Standard Dipper to Extendahoe Dipper Conversion, Incl 2 - 12

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

136263A1

ROD,12.7mm OD x 407mm L

Handle

1шт.

3

L54563

KNOB

1шт.

4

D149867

BOOT

1шт.

5

425-118

NUT,1/2"-20, G5

1шт.

6

182006A1

LEVER

Extendable Dipper

1шт.

7

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

1шт.

8

432-612

COTTER PIN,3/32" x 3/4"

2шт.

9

D149288

PIN,8.33mm OD x 30.66mm L

1шт.

10

D149287

PIN,7.9mm OD x 26.72mm L

1шт.

11

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

4шт.

12

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.
