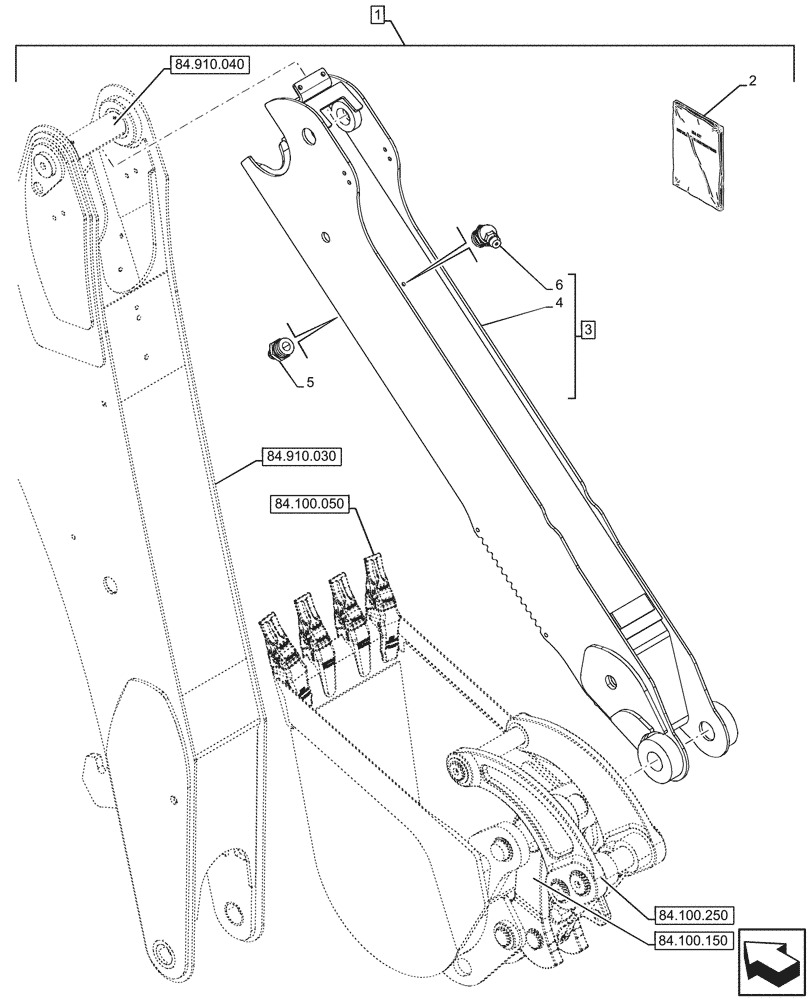

Запчасти Case 580SN (88.100.84[03]) - DIA KIT, STANDARD DIPPER, EXTENDABLE DIPPER, CONVERSION KIT, FOOT CONTROL (88) - ACCESSORIES

1

47945939

CONSTRUCTION DIA

Standard Dipper to Extendahoe Dipper Conversion, Incl 2 - 6

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

48051287

INSTRUCTION

1шт.

3

47615841

DIPPER

ASSY, Power Tan, Mobile Arm, Incl 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Extendable Dipper, Incl in 3

1шт.

5

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

6

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

1шт.
