(88.100.55[01]) - DIA KIT, BRAKE ENABLE DE-CLUTCH, HARNESS

Запчасти Case 580SN (88.100.55[01]) - DIA KIT, BRAKE ENABLE DE-CLUTCH, HARNESS (88) - ACCESSORIES

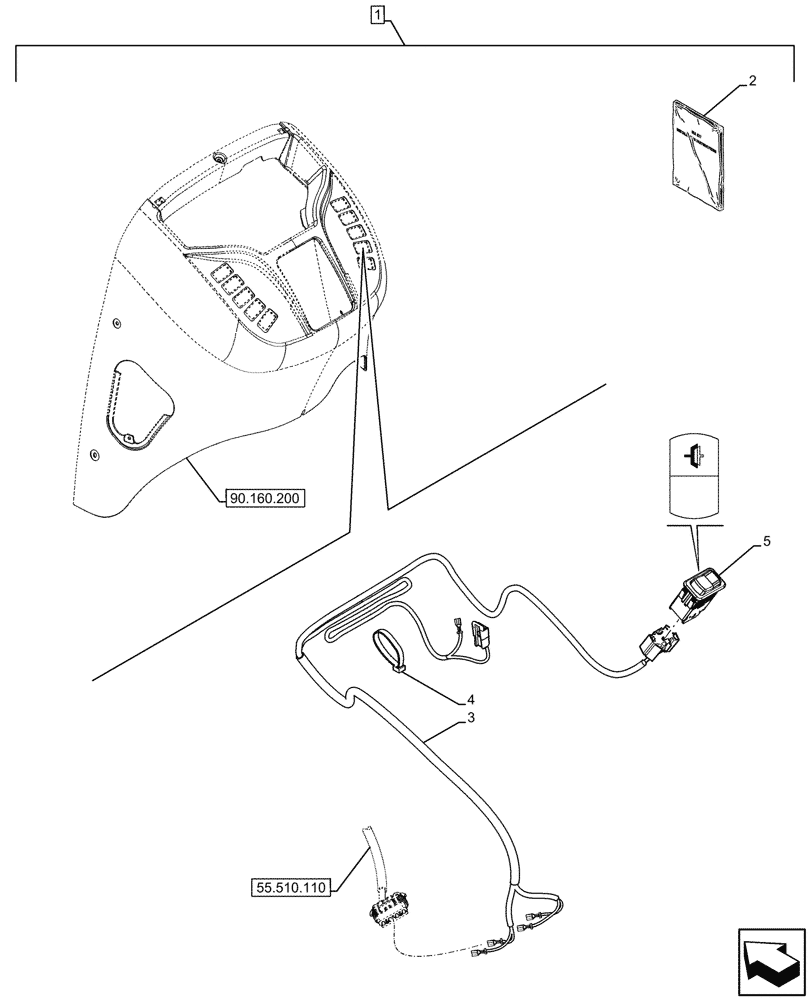

Схема запчастей Case 580SN - (88.100.55[01]) - DIA KIT, BRAKE ENABLE DE-CLUTCH, HARNESS (88) - ACCESSORIES
90.160.200
2
3
5
1
4
55.510.110
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84342198

CONSTRUCTION DIA

Brake Enable De-Clutch, Incl 2 - 5

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

2

84369365

INSTRUCTION

1шт.

3

84290781

WIRE HARNESS

Brake Enable De-Clutch

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

5

370132A1

SWITCH

1шт.
