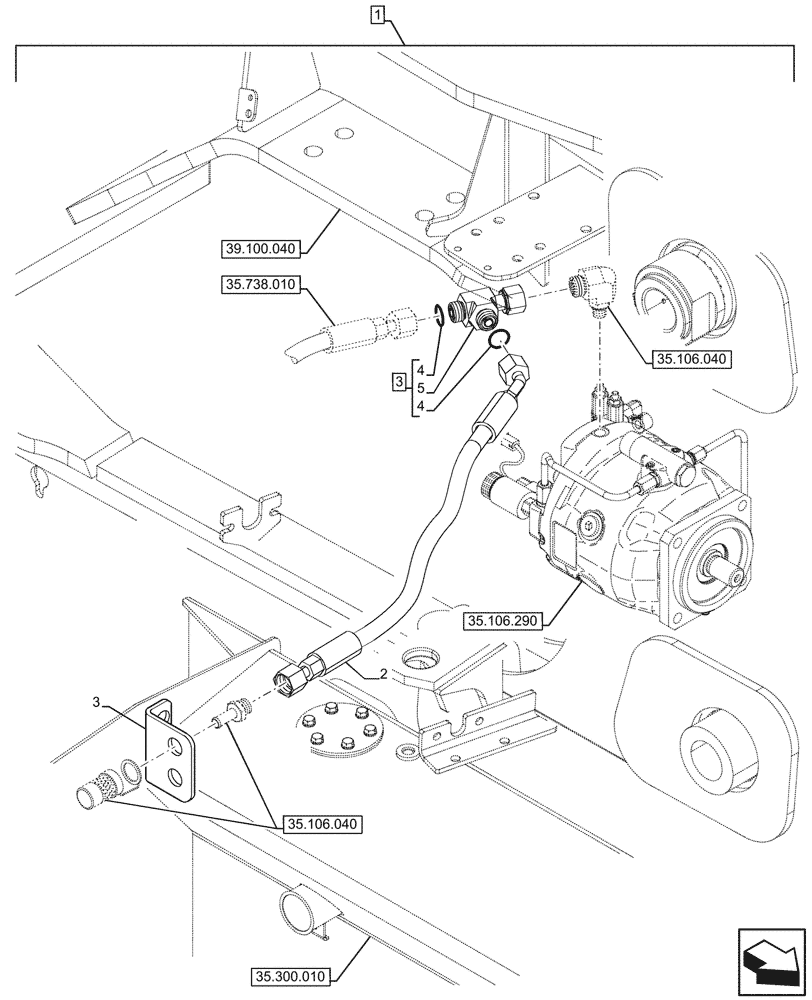

Запчасти Case 580SN (88.100.35[32]) - DIA KIT, POWER LIFT (88) - ACCESSORIES

1

84561133

CONSTRUCTION DIA

Power Lift, Incl 2 - 5

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

84537170

HOSE,6.3mm ID, 685mm L, SAE100R16 type S

Remote P Diagnostic Port

1шт.

3

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

ASSY, Incl 4, 5

1шт.

4

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

5

NSS

NOT SOLD SEPARAT

Tee, Incl in 3

1шт.
