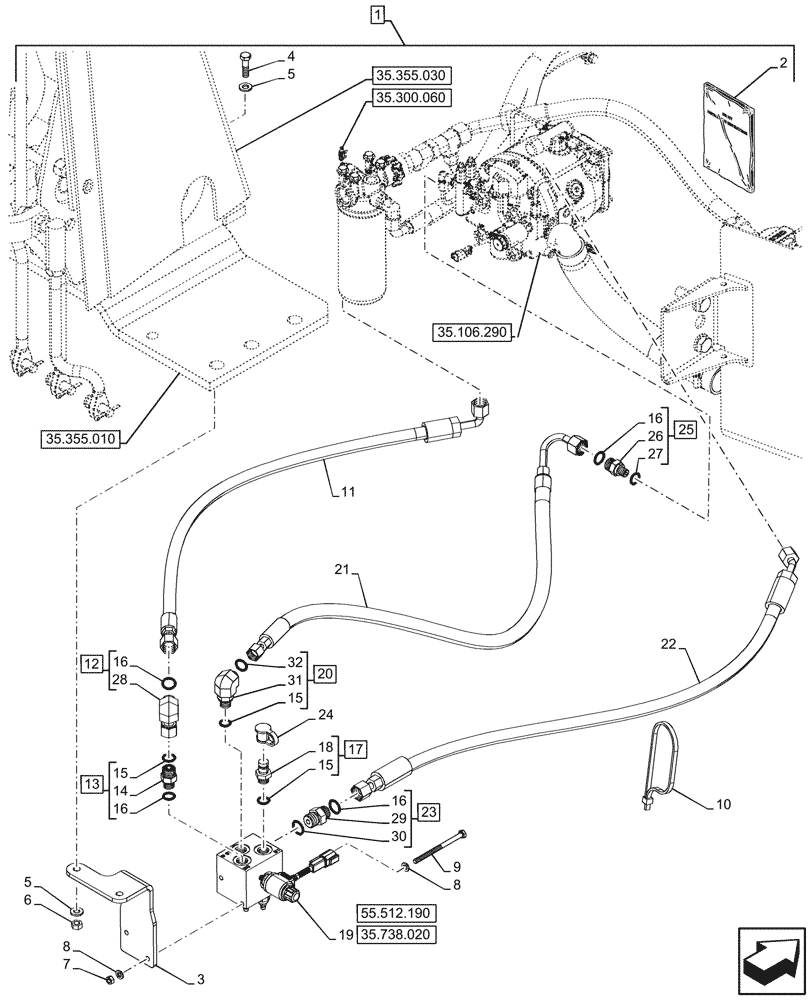

Запчасти Case 580SN (88.100.35[31]) - DIA KIT, POWER LIFT (88) - ACCESSORIES

1

84561133

CONSTRUCTION DIA

Power Lift, Incl 2 - 32

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

84561134

INSTRUCTION

1шт.

3

84483241

BRACKET

Valve Mounting

1шт.

4

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

5

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

6

9706690

NUT,M8 x 1.25, Cl 8

2шт.

7

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

8

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

4шт.

9

9850685

BOLT,Hex, M6 - 1 x 90mm, Cl 8.8

2шт.

10

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

11

84483473

HOSE,10mm ID x 1065mm L, SAE 100R6

Heavy Lift Return

1шт.

12

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

ASSY, Incl 16 (Qty 1), 28

1шт.

13

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

ASSY, Incl 14, 15 (Qty 1), 16 (Qty 1)

1шт.

14

NSS

NOT SOLD SEPARAT

Connector, Incl in 13

1шт.

15

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

16

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

17

86596853

QUICK MALE COUPLING,9/16"-18

ASSY, Incl 15 (Qty 1), 18

1шт.

18

NSS

NOT SOLD SEPARAT

Coupler, Incl in 17

1шт.

19

84527714

CONTROL VALVE

ASSY, Heavy Lift Mechanical Control

1шт.

20

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

ASSY, Incl 15, 31, 32

1шт.

21

84540599

HOSE,6.3mm ID x 880mm L, SAE 100R16 Type S

Heavy Lift

1шт.

22

84483235

HOSE,10mm ID x 842mm L, SAE 100R16 Type S

Heavy Lift

1шт.

23

87672176

HYD CONNECTOR

ASSY, Incl 16 (Qty 1), 29, 30

1шт.

24

H434163

DUST CAP

1шт.

25

9840330

HYD CONNECTOR,11/16" - 16 ORFS x 7/16" - 20 ORB

ASSY, Incl 16 (Qty 1), 26, 27

1шт.

26

NSS

NOT SOLD SEPARAT

Connector, Incl in 25

1шт.

27

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

28

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 12

1шт.

29

NSS

NOT SOLD SEPARAT

Connector, Incl in 23

1шт.

30

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

31

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 20

1шт.

32

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.
