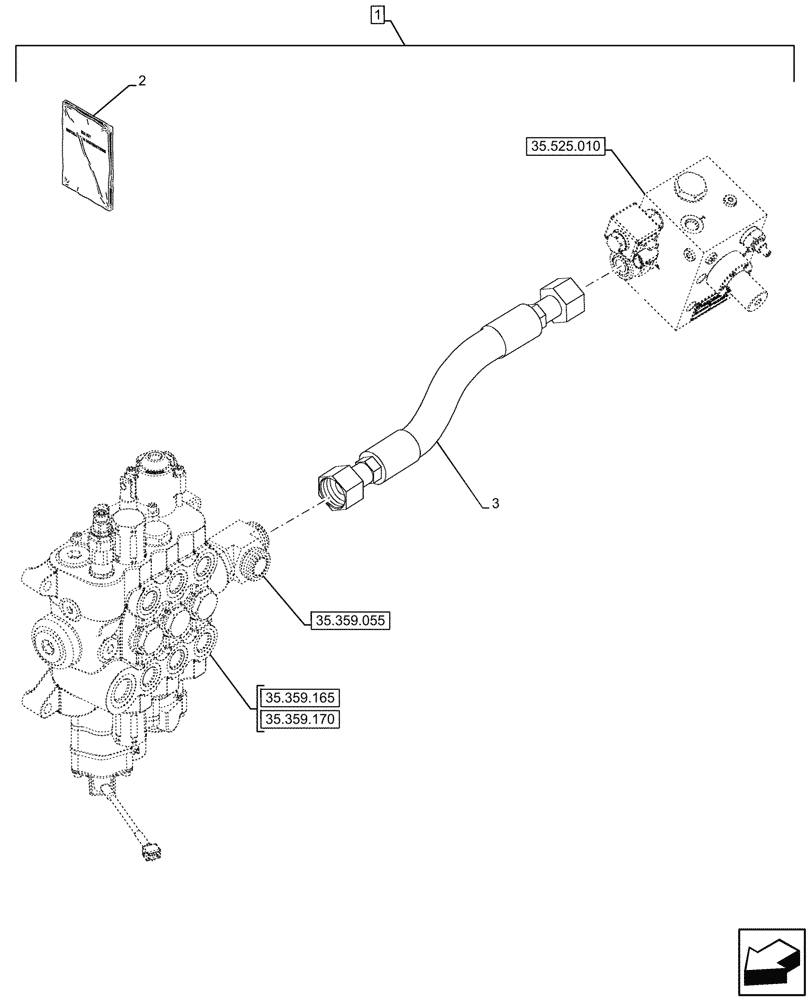

Запчасти Case 580SN (88.100.35[19]) - DIA KIT, THREE SPOOL VALVE, MECHANICAL CONTROL, POWERSHIFT TRANSMISSION (88) - ACCESSORIES

1

47955736

CONSTRUCTION DIA

Loader Valve 3 Spool, Powershift Transmission, Incl 2, 3

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47961111

INSTRUCTION

1шт.

3

84256650

HOSE ASSY.,25mm ID x 954mm L

Loader Valve to Hammer Valve

1шт.
