(88.100.35[17]) - DIA KIT, THREE SPOOL VALVE, MECHANICAL CONTROL, POWERSHIFT TRANSMISSION

Запчасти Case 580SN (88.100.35[17]) - DIA KIT, THREE SPOOL VALVE, MECHANICAL CONTROL, POWERSHIFT TRANSMISSION (88) - ACCESSORIES

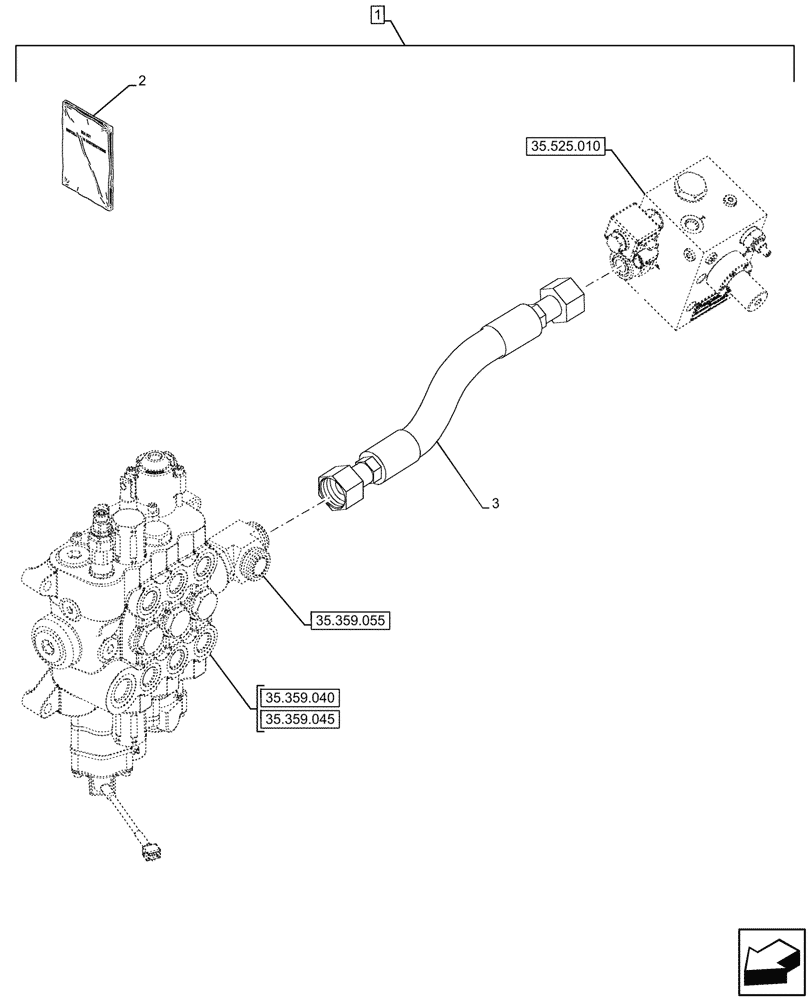

Схема запчастей Case 580SN - (88.100.35[17]) - DIA KIT, THREE SPOOL VALVE, MECHANICAL CONTROL, POWERSHIFT TRANSMISSION (88) - ACCESSORIES
35.359.055
3
2
1
35.525.010
35.359.040
35.359.045
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47955719

CONSTRUCTION DIA

Loader Valve 3 Spool, Powershift Transmission, Incl 2, 3

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47961108

INSTRUCTION

1шт.

3

84256650

HOSE ASSY.,25mm ID x 954mm L

Loader valve to Hammer Valve

1шт.
