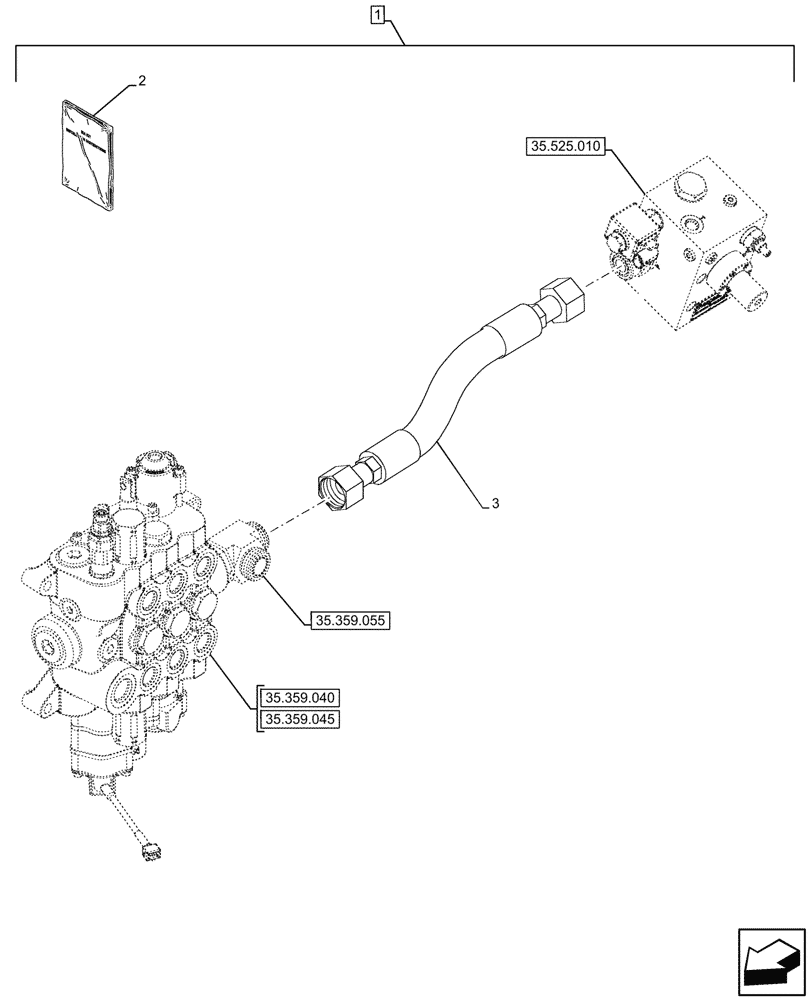

Запчасти Case 580SN (88.100.35[16]) - DIA KIT, THREE SPOOL VALVE, MECHANICAL CONTROL, POWERSHUTTLE TRANSMISSION (88) - ACCESSORIES

1

47955708

CONSTRUCTION DIA

Loader Valve 3 Spool, Powershuttle Transmission, Incl 2, 3

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47961107

INSTRUCTION

1шт.

3

84256650

HOSE ASSY.,25mm ID x 954mm L

Loader valve to Hammer Valve

1шт.
