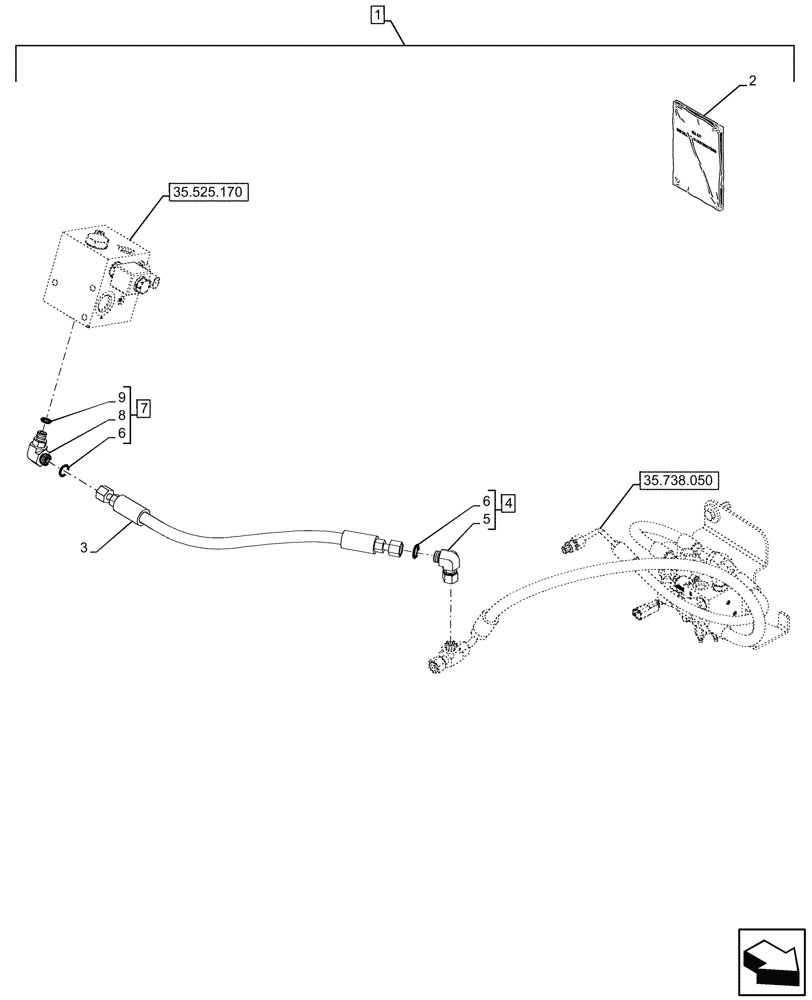

Запчасти Case 580SN (88.100.35[02]) - DIA KIT, UNI-DIRECTIONAL, W/ STANDARD DIPPER (88) - ACCESSORIES

1

47358915

CONSTRUCTION DIA

Uni-Directional, Standard Dipper, Pilot Control, Incl 2 - 9

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47358921

INSTRUCTION

1шт.

3

84573738

HOSE,10mm ID x 560mm L

Hammer to Heavy Lift

1шт.

4

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

ASSY, Incl 5, 6 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 4

1шт.

6

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

7

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

ASSY, Incl 6 (Qty 1), 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 7

1шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
