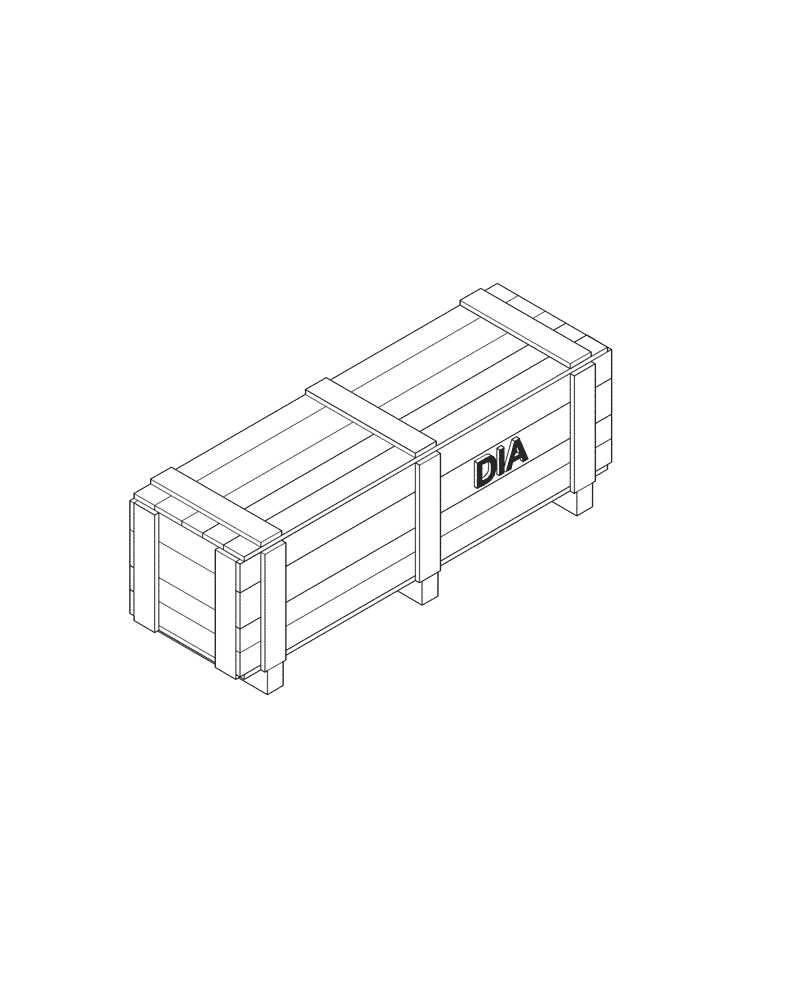

Запчасти Case 580SN (88.100.35[00]) - DIA KIT, HYDRAULIC SYSTEM (88) - ACCESSORIES

1

47357827

CONSTRUCTION DIA

Uni-Directional, Inst. Instruction P/N 47357896

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Standard Dipper and Pilot Control

1шт.

2

47358915

CONSTRUCTION DIA

Uni-Directional, Inst. Instruction P/N 47358921

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Standard Dipper and Pilot Control

1шт.

3

47359725

CONSTRUCTION DIA

Uni-Directional, Inst. Instruction P/N 47358921

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Extendable Dipper and Pilot Control

1шт.

4

47359953

CONSTRUCTION DIA

Uni-Directional, Inst. Instruction P/N 47357896

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Extendable Dipper and Pilot Control

1шт.

5

47501542

CONSTRUCTION DIA

No Auxiliary to Combo, Inst. Instruction P/N 47607733

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Extendable Dipper and Pilot Control

1шт.

6

47501543

CONSTRUCTION DIA

No Auxiliary to Combo, Inst. Instruction P/N 47607727

1шт.

Valid for 580SN (Livery) NRC Model Only, W/ Standard Dipper and Pilot Control

1шт.

7

47501544

CONSTRUCTION DIA

No Auxiliary to Combo, Inst. Instruction P/N 47607728

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Standard Dipper and Pilot Control

1шт.

8

47501545

CONSTRUCTION DIA

No Auxiliary to Combo, Inst. Instruction P/N 47607739

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Standard Dipper and Pilot Control

1шт.

9

47501547

CONSTRUCTION DIA

No Auxiliary to Combo, Inst. Instruction P/N 47613669

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Extendable Dipper and Pilot Control

1шт.

10

47661818

CONSTRUCTION DIA

3 Spool Valve, Inst. Instruction P/N 47661819

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC, 590SN (Livery) NRC Models Only, W/ Standard Transmission and Pilot Control

1шт.

11

47661834

CONSTRUCTION DIA

No Auxiliary to Combo, Inst. Instruction P/N 47661836

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Standard Dipper and Pilot Control

1шт.

12

47661908

CONSTRUCTION DIA

Uni-Auxiliary to Combo, Inst. Instruction P/N 47661913

1шт.

Valid for 580SN (Livery) NRC, 590SN (Livery) NRC Models Only, W/ Standard Transmission and Pilot Control

1шт.

13

47662021

CONSTRUCTION DIA

No Auxiliary to Combo, Inst. Instruction P/N 47662022

1шт.

Valid for 580SN (Livery) NRC Model Only, W/ Extendable Dipper and Pilot Control

1шт.

14

47662029

CONSTRUCTION DIA

Uni-Auxiliary to Combo, Inst. Instruction P/N 47662032

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Extendable Dipper and Pilot Control

1шт.

15

47662033

CONSTRUCTION DIA

Uni-Auxiliary to Combo Auxiliary, Inst. Instruction P/N 47662036

1шт.

Valid for 580SN (Livery) NRC, 590SN (Livery) NRC Models Only, W/ Extendable Dipper and Pilot Control

1шт.

16

47670289

SERVICE KIT

Dual Auxiliary

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 590SN (Livery) NRC Models Only, W/ Standard Dipper and Pilot Control

1шт.

17

47670543

SERVICE KIT

Dual Auxiliary, Service

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 590SN (Livery) NRC Models Only, W/ Extendable Dipper and Pilot Control

1шт.

18

47788201

CONSTRUCTION DIA

Loader Valve 3 Spool, Inst. Instruction P/N 47788202

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC, 590SN (Livery) NRC Models Only, W/ Powershift Transmission

1шт.

19

47880085

CONSTRUCTION DIA

Ride Control, Inst. Instruction P/N 47880088

1шт.

20

47945923

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Inst. Instruction P/N 48047767

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Mechanical Control and Standard Dipper

1шт.

21

47945925

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Inst. Instruction P/N 48047767

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Mechanical Control and Extendable Dipper

1шт.

22

47945926

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Inst. Instruction P/N 48047790

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Mechanical Control and Standard Dipper

1шт.

23

47945927

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Inst. Instruction P/N 48047790

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Mechanical Control and Extendable Dipper

1шт.

24

47945928

CONSTRUCTION DIA

Conversion 2 Lever to Foot Swing, Inst. Instruction P/N 47951092

1шт.

Valid for All Models, W/ Standard Dipper

1шт.

25

47945930

CONSTRUCTION DIA

Conversion 2 Lever to Foot Swing, Inst. Instruction P/N 47944986

1шт.

Valid for All Models, W/ Extendable Dipper

1шт.

26

47945938

CONSTRUCTION DIA

Combo Auxiliary, Inst. Instruction P/N 84493064

1шт.

Valid for All Models, W/ Mechanical Control and Standard Dipper

1шт.

27

47945945

CONSTRUCTION DIA

Conversion Foot Swing to 2 Lever, Inst. Instruction P/N 47951096

1шт.

Valid for All Models, W/ Standard Dipper

1шт.

28

47945946

CONSTRUCTION DIA

Conversion Foot Swing to 2 Lever, Inst. Instruction P/N 47947801

1шт.

Valid for All Models, W/ Extendable Dipper

1шт.

29

47946549

CONSTRUCTION DIA

Uni to Combo Auxiliary, Inst. Instruction P/N 84493064

1шт.

Valid for All Models, W/ Mechanical Control and Extendable Dipper

1шт.

30

47955704

CONSTRUCTION DIA

Loader Valve 3 Spool, Inst. Instruction P/N 47960677

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Pilot Control and Powershift Transmission

1шт.

31

47955708

CONSTRUCTION DIA

Loader Valve 3 Spool, Inst. Instruction P/N 47961107

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Mechanical Control and Powershuttle Transmission

1шт.

32

47955719

CONSTRUCTION DIA

Loader Valve 3 Spool, Inst. Instruction P/N 47961108

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Mechanical Control and Powershift Transmission

1шт.

33

47955728

CONSTRUCTION DIA

Loader Valve 3 Spool, Inst. Instruction P/N 47961110

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC, 590SN (Livery) NRC Models Only, W/ Mechanical Control and Standard Transmission

1шт.

34

47955736

CONSTRUCTION DIA

Loader Valve 3 Spool, Inst. Instruction P/N 47961111

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC, 590SN (Livery) NRC Models Only, W/ Mechanical Control and Powershift Transmission

1шт.

35

47955743

CONSTRUCTION DIA

Loader Valve 3 Spool, Inst. Instruction P/N 47960993

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Pilot Control and Powershuttle Transmission

1шт.

36

47955841

CONSTRUCTION DIA

Mechanical Coupler Upgrade, Inst. Instruction P/N 47938109

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC Models Only, W/ Standard Dipper

1шт.

37

47955842

CONSTRUCTION DIA

Mechanical Coupler Upgrade, Inst. Instruction P/N 47944985

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Extendable Dipper

1шт.

38

48024054

CONSTRUCTION DIA

Universal Coupler, Backhoe, Inst. Instruction P/N 47931721

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC Models Only, W/ Standard Dipper

1шт.

39

48024055

CONSTRUCTION DIA

Universal Coupler, Backhoe, Inst. Instruction P/N 47931721

1шт.

Valid for 590SN (Livery) NRC Models Only, W/ Standard Dipper

1шт.

40

48024056

CONSTRUCTION DIA

Universal Coupler, Backhoe, Inst. Instruction P/N 47931721

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC Models Only, W/ Extendable Dipper

1шт.

41

48024057

CONSTRUCTION DIA

Universal Coupler, Backhoe, Inst. Instruction P/N 47931721

1шт.

Valid for 590SN (Livery) NRC Models Only, W/ Extendable Dipper

1шт.

42

48059276

CONSTRUCTION DIA

Universal Backhoe Coupler, Inst. Instruction P/N 48059458

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Standard Dipper

1шт.

43

48059278

CONSTRUCTION DIA

Universal Backhoe Coupler, Inst. Instruction P/N 48059458

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Extrendable Dipper

1шт.

44

84222040

CONSTRUCTION DIA

Field Service, Anti-Vibration, Inst. Instruction P/N 84376315

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Pilot Control

1шт.

45

84300153

SERVICE KIT

Auxiliary Quick Disconnect

1шт.

46

84376312

CONSTRUCTION DIA

Bi Auxiliary Backhoe Valve Section

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Pilot Control

1шт.

47

84412151

SERVICE KIT

Uni-Auxiliary, Service

1шт.

Valid for All Models, W/ Pilot Control

1шт.

48

84412227

SERVICE KIT

Dual Auxiliary

1шт.

Valid for All Models, W/ Extendable Dipper and Pilot Control

1шт.

49

84412228

SERVICE KIT

Dual Auxiliary

1шт.

Valid for All Models, W/ Standard Dipper and Pilot Control

1шт.

50

84484664

CONSTRUCTION DIA

Excavator Control Pattern, Inst. Instruction P/N 84484671

1шт.

51

84484676

SERVICE KIT

Valve 3 Spool Section, Tie Rods

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC, 590SN (Livery) NRC Models Only

1шт.

52

84487512

KIT

Uni-Auxiliary, Inst. Instruction P/N 84487513

1шт.

Valid for 580N NRC Model Only, W/ Standard Dipper and Pilot Control

1шт.

53

84487895

KIT

Uni-Auxiliary, Inst. Instruction P/N 84487513

1шт.

Valid for 580N NRC Model Only, W/ Extendable Dipper and Pilot Control

1шт.

54

84490914

SERVICE KIT

Extendable Dipper Conversion

1шт.

55

84544872

CONSTRUCTION DIA

Uni-Directional, Inst. Instruction P/N 84544874

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Standard Dipper and Pilot Control

1шт.

56

84544875

CONSTRUCTION DIA

Uni-Directional, Inst. Instruction P/N 84544874

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Extendable Dipper and Pilot Control

1шт.

57

84546986

CONSTRUCTION DIA

Uni-Directional, Inst. Instruction P/N 84546987

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Mechanical Control and Standard Dipper

1шт.

58

84546989

CONSTRUCTION DIA

Uni-Directional, Inst. Instruction P/N 84546987

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Mechanical Control and Extendable Dipper

1шт.

59

84546990

CONSTRUCTION DIA

Uni-Directional, Inst. Instruction P/N 84546991

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Mechanical Control and Standard Dipper

1шт.

60

84546992

CONSTRUCTION DIA

Uni-Directional, Inst. Instruction P/N 84546991

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Mechanical Control and Extendable Dipper

1шт.

61

84561133

CONSTRUCTION DIA

Power Lift, Inst. Instruction P/N 84561134

1шт.

Valid for 580SN (Livery) NRC Model Only

1шт.

62

84588432

CONSTRUCTION DIA

Dipper, Lock Valve, Inst. Instruction P/N 84588443

1шт.

Valid for 580N (Livery) NRC Model Only

1шт.

63

84588434

CONSTRUCTION DIA

Dipper, Lock Valve, Inst. Instruction P/N 84588445

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only

1шт.

64

84588435

CONSTRUCTION DIA

Dipper, Lock Valve, Inst. Instruction P/N 84588447

1шт.

Valid for 590SN (Livery) NRC Model Only

1шт.

65

84588436

CONSTRUCTION DIA

Boom, Lock Valve, Inst. Instruction P/N 84588444

1шт.

Valid for 580N (Livery) NRC Model Only

1шт.

66

84588439

CONSTRUCTION DIA

Boom, Lock Valve, Inst. Instruction P/N 84588448

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only

1шт.

67

84588441

CONSTRUCTION DIA

Boom, Lock Valve, Inst. Instruction P/N 84588449

1шт.

Valid for 590SN (Livery) NRC Model Only

1шт.

68

87366503

HYDRAULIC VALVE

Bi-Auxiliary Valve Section

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Pilot Control

1шт.
