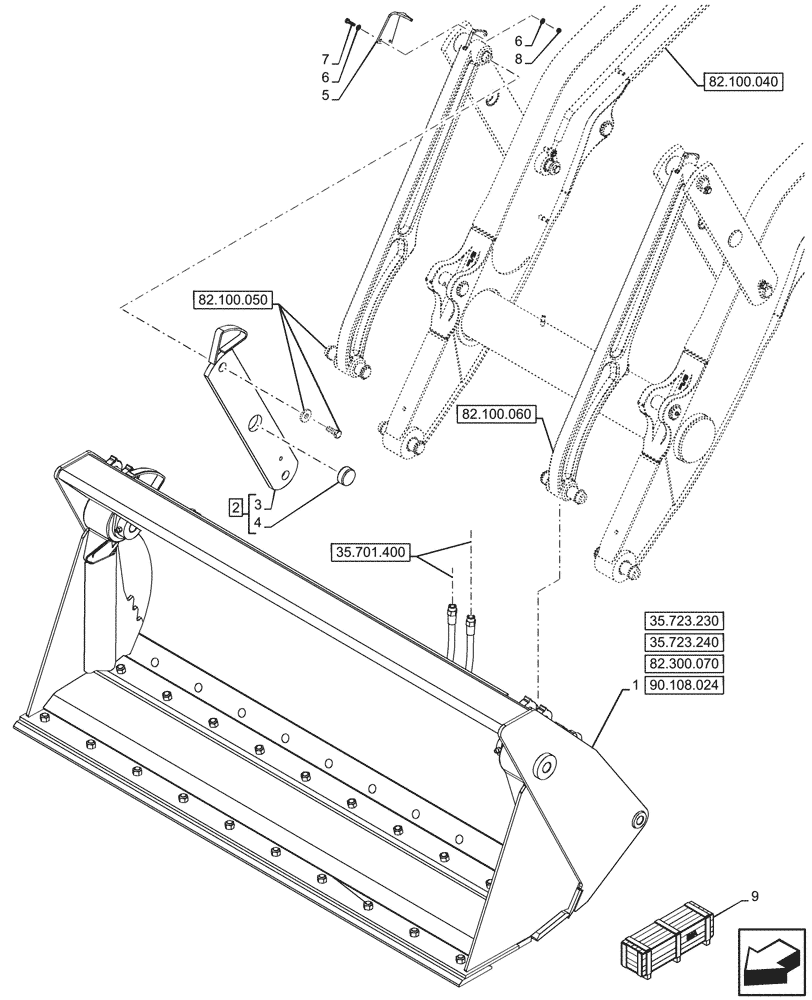

Запчасти Case 580SN (82.300.060) - VAR - 747863 - 4-IN-1 BUCKET, 82INCH/2083MM (82) - FRONT LOADER & BUCKET

1

47802379

4 IN 1 BUCKET,82" L

ASSY, 82in/2082mm 4-IN-1

1шт.

2

47959581

LINK

ASSY, Grey, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Link, Incl in 2

1шт.

4

47865950

BUSHING,50.26mm ID x 59.98mm OD x 25.4mm L

1шт.

5

48017563

POINTER

1шт.

6

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

7

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

9

48054424

CONSTRUCTION DIA

Bucket 82Inch 4 in 1, Incl 1 - 8

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC Models only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
