(82.300.020) - VAR - 747862 - BUCKET, 82INCH/2083MM WIDE LONG LIP

Запчасти Case 580SN (82.300.020) - VAR - 747862 - BUCKET, 82INCH/2083MM WIDE LONG LIP (82) - FRONT LOADER & BUCKET

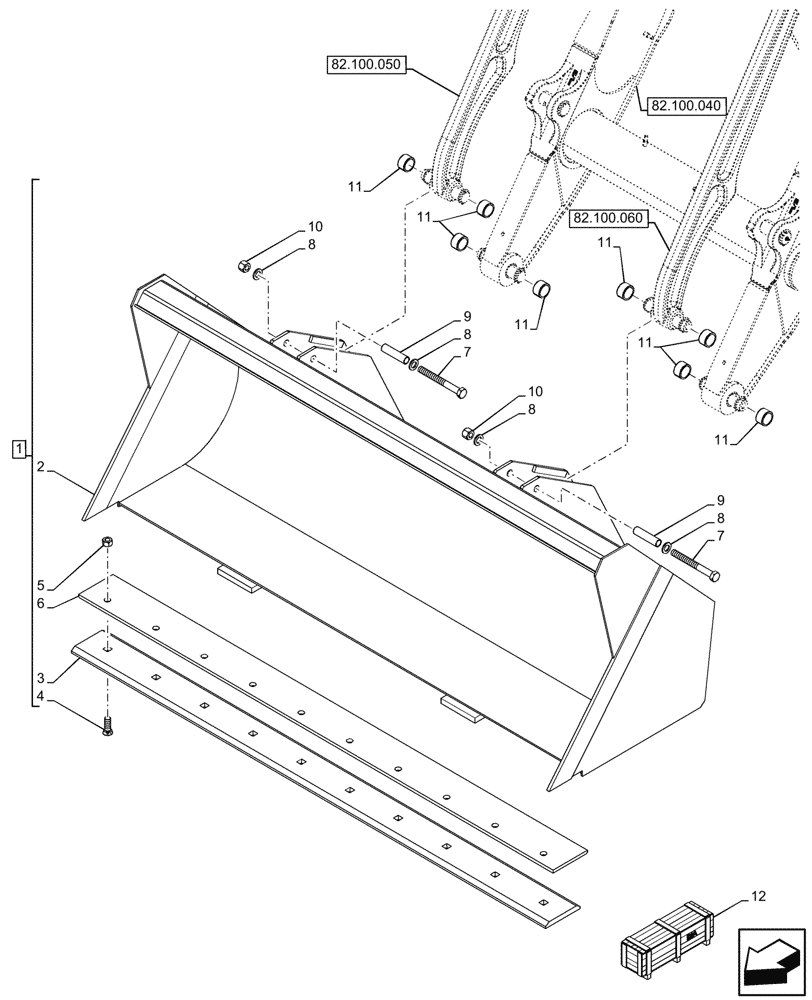

Схема запчастей Case 580SN - (82.300.020) - VAR - 747862 - BUCKET, 82INCH/2083MM WIDE LONG LIP (82) - FRONT LOADER & BUCKET
82.100.060
2
11
11
8
11
1
11
11
9
6
9
8
10
7
8
12
4
3
7
8
10
11
5
82.100.050
82.100.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84470521

BUCKET,82 Inch W/ Blade

ASSY, Grey, 1YD 82Inch/2083mm, Incl 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

3

411661A1

CUTTING EDGE,Bolt On, 10 Hole, 152mm W x 2113mm L

1шт.

4

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

10шт.

5

29-1012

NUT,3/4"-10, G8

10шт.

6

113457A1

CUTTING EDGE,Bolt On, 10 Holes, 12mm W x 2113mm L

1шт.

7

828-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

2шт.

8

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

9

142538A1

SPACER,21mm ID x 25mm OD x 105mm L

2шт.

10

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

11

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

8шт.

12

84482606

BUCKET

Bucket 82 Inch with Blade, Incl 1 - 11

1шт.

Valid for 580SN (Livery) NRC Model only

1шт.
