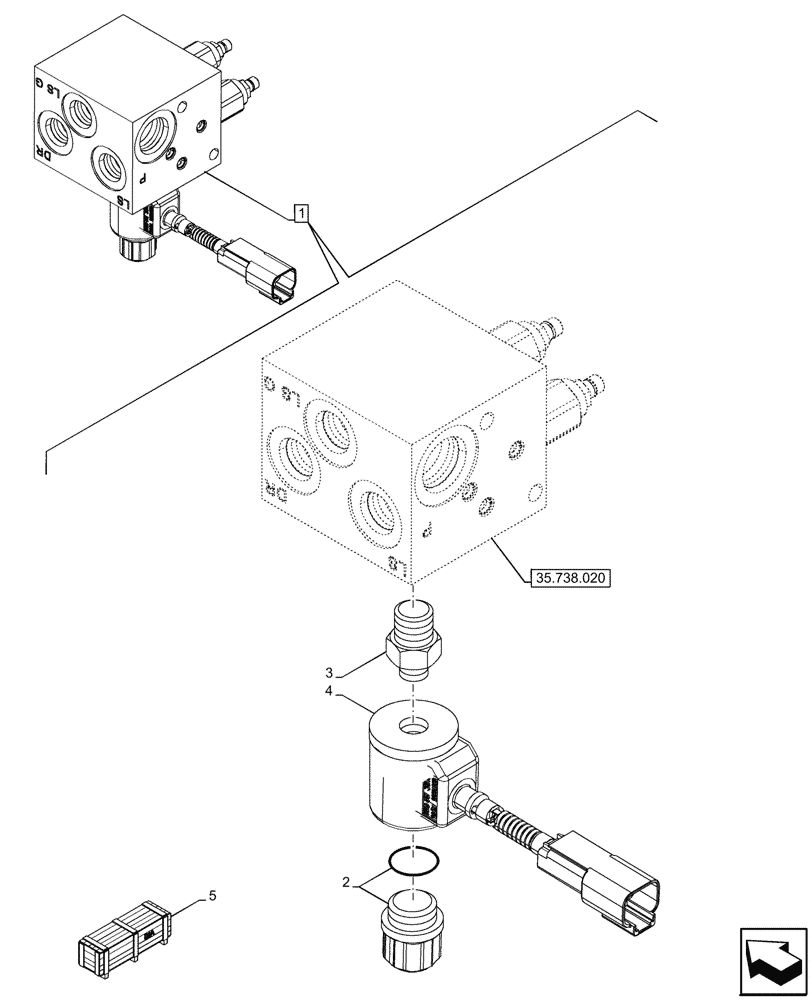

Запчасти Case 580SN (55.512.190) - VAR - 423080 - VALVE HEAVY LIFT, COMPONENTS, SOLENOID (55) - ELECTRICAL SYSTEMS

1

84527714

CONTROL VALVE

ASSY, Heavy Lift Mechanical Control, Incl 2 - 4

1шт.

See also Control Valve Components in Figure 35.738.020

1шт.

2

84338936

SERVICE KIT

1шт.

3

84338935

COIL

1шт.

4

84545954

SOLENOID VALVE

Power Lift

1шт.

5

84561133

CONSTRUCTION DIA

Power Lift, Incl 1 - 4

1шт.

Valid for 580SN (Livery) NRC Model only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
