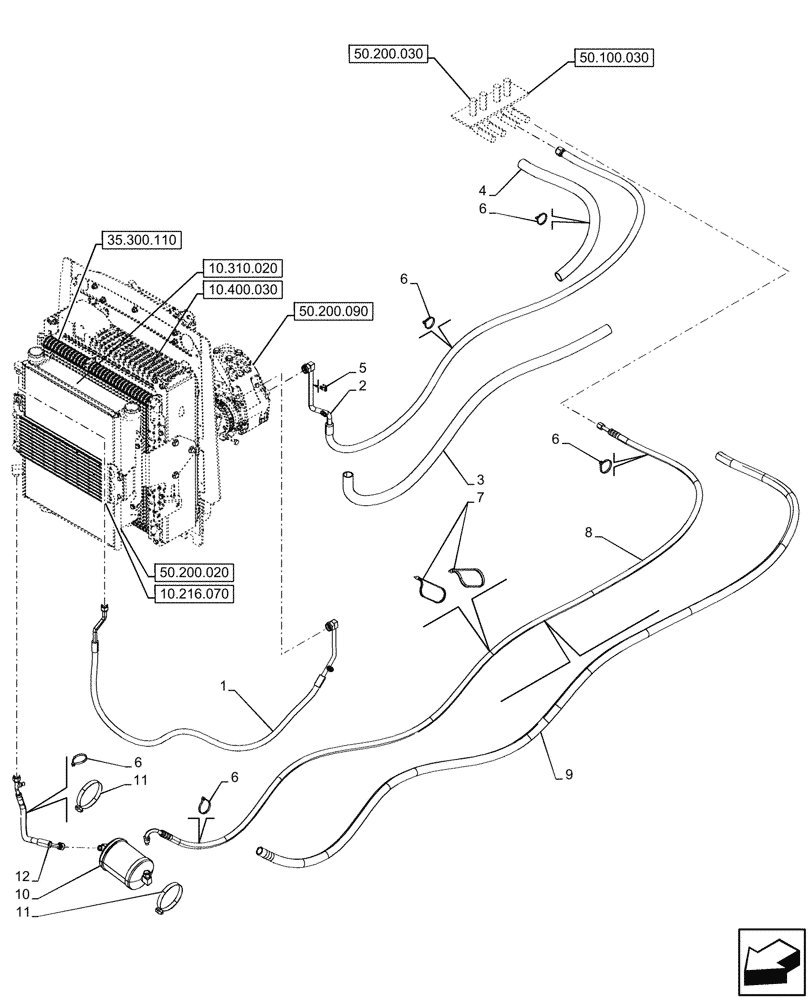

Запчасти Case 580SN (50.200.100) - VAR - 747853, 747855 - AIR CONDITIONING, RECEIVER-DRYER, LINE (50) - CAB CLIMATE CONTROL
50.200.030
9
6
12
6
8
4
1
11
6
10
5
7
6
3
6
2
11
10.310.020
50.200.020
50.200.090
10.400.030
50.100.030
10.216.070
35.300.110
№
Артикул
Название
Примечание
Количество
1
84398074
A/C HOSE,1350mm L
Compressor to Condenser
1шт.
2
87630220
HOSE ASSY.,16mm ID x 2425mm L
Cab to Compressor
1шт.
3
87726951
HOSE PROTECTION,26.3mm ID x 1200mm L
1шт.
4
84329867
HOSE PROTECTION,26.87mm ID x 590mm L
1шт.
5
84292413
MOUNTING CLIP,15mm ID
1шт.
6
L11541
CABLE TIE,203.2mm L, Nylon
5шт.
7
L18331
CABLE TIE,375.9mm L, Nylon, Black
2шт.
8
84418866
HOSE,8mm ID x 2787mm L
Dryer to Cab
1шт.
9
84522912
HOSE PROTECTION,19.1mm ID x 2670mm L
Conduit, Polypropylene
1шт.
11
214-1464
HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm
2шт.
12
87630218
A/C HOSE,340mm L
Condenser to Dryer
1шт.
Выбрано товаров: 12
