(41.216.040) - FRONT AXLE, STEERING CYLINDER, STD, STD, 4WD

Запчасти Case 580SN (41.216.040) - FRONT AXLE, STEERING CYLINDER, STD, STD, 4WD (41) - STEERING

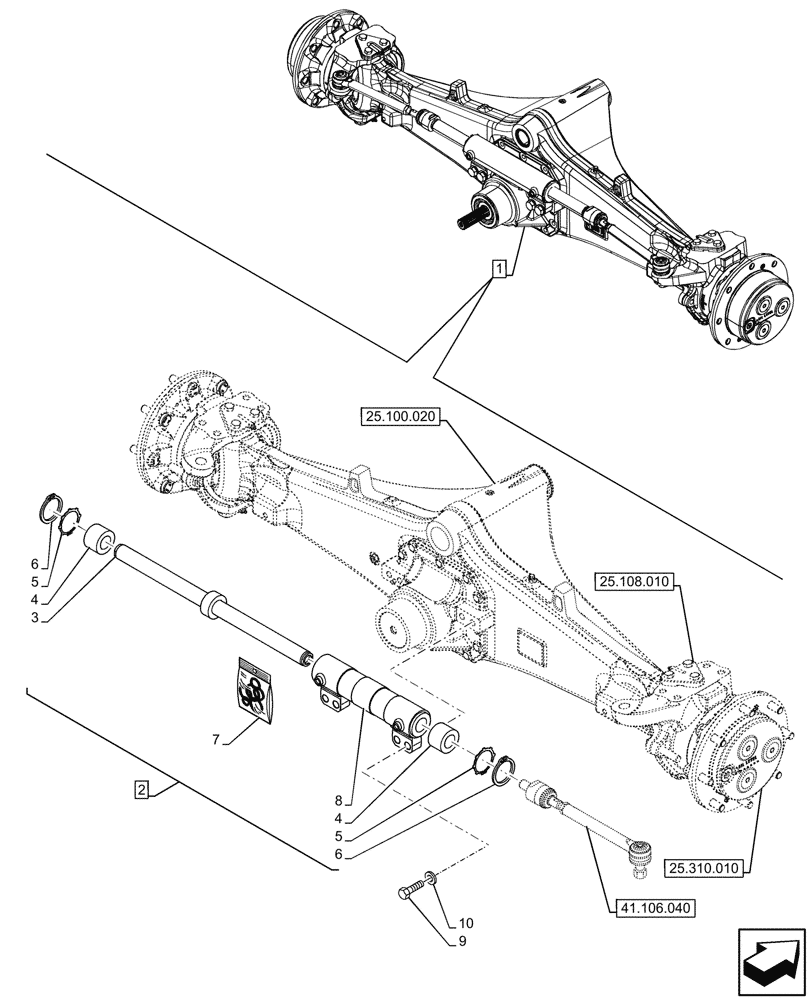

Схема запчастей Case 580SN - (41.216.040) - FRONT AXLE, STEERING CYLINDER, STD, STD, 4WD (41) - STEERING
25.108.010
6
7
4
6
5
5
2
4
10
3
1
8
9
25.310.010
25.100.020
41.106.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47559839

FRONT AXLE

ASSY, Grey, PS1321 ACP, 12.1-1, Incl 2 - 10

1шт.

See also Front Axle Components in Figures 25.100.020, 25.100.030, 25.102.010, 25.102.020, 25.108.010, 25.108.020, 25.108.030, 25.108.040, 25.310.010, 41.106.040

1шт.

2

84264405

STEERING CYLINDER,Double Acting, 36mm Rod, 63mm Bore, 245mm Stroke

ASSY, Incl 3 - 8

1шт.

3

84276950

ROD

Piston Steering Cylinder

1шт.

4

84276991

CYLINDER END CAP

Steering

2шт.

5

47126119

RING

2шт.

6

47126120

RING

External

2шт.

7

84330972

SEAL KIT

Steering Cylinder, 4WD

1шт.

8

NSS

NOT SOLD SEPARAT

Sleeve, Incl in 2

1шт.

9

11244634

BOLT,Hex, M18 x 1.5 x 60, 10.9

4шт.

10

84349418

WASHER,19mm ID x 34mm OD x 3mm Thk

4шт.
