(41.206.080) - VAR - 423011 - POWER STEERING PUMP, LINE

Запчасти Case 580SN (41.206.080) - VAR - 423011 - POWER STEERING PUMP, LINE (41) - STEERING

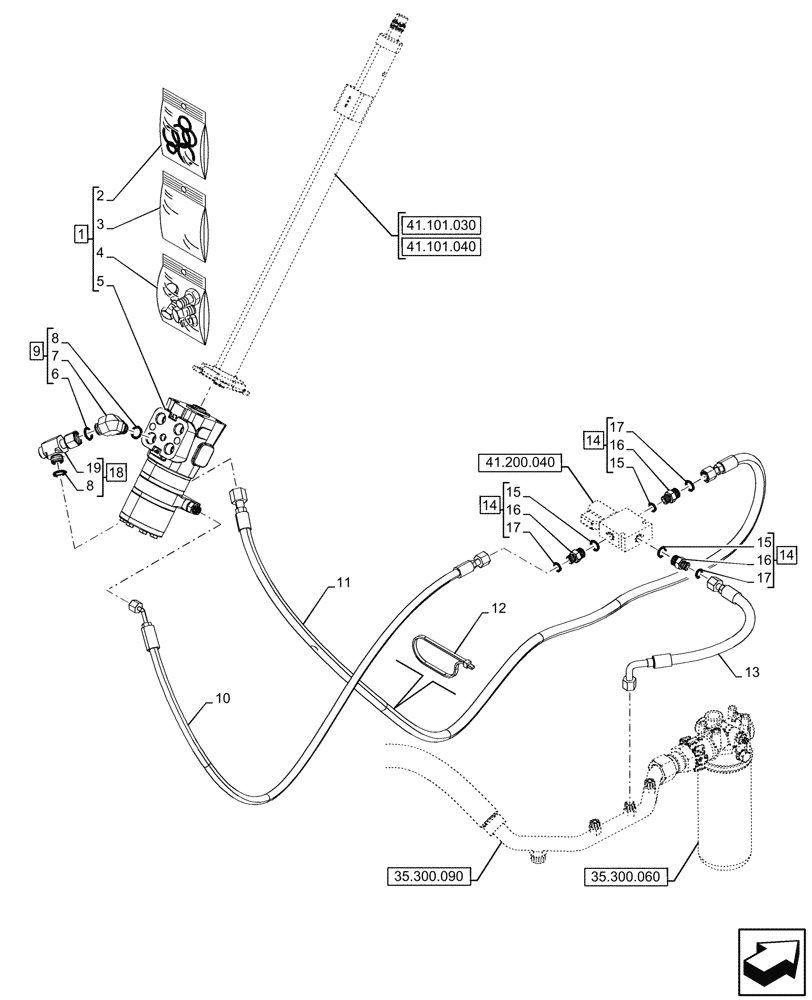

Схема запчастей Case 580SN - (41.206.080) - VAR - 423011 - POWER STEERING PUMP, LINE (41) - STEERING
41.101.040
19
6
12
17
16
3
16
4
14
18
10
2
7
14
15
8
15
9
15
1
16
8
5
17
11
13
14
17
41.200.040
41.101.030
35.300.090
35.300.060
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87579286

STEERING VALVE

ASSY, Steering Column, Incl 2 - 5

1шт.

2

87454545

SEAL KIT

1шт.

3

396592A1

KIT

Anti-Cavitation Valve

1шт.

4

87619415

SET OF SCREWS

KIT Bolt

1шт.

5

NSS

NOT SOLD SEPARAT

Pump, Incl in 1

1шт.

6

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 9

1шт.

8

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

9

9992307

90 ELBOW,90 Degree, 13/16"-16 x 3/4"-16 Adj, ORFS

ASSY, Incl 6, 7, 8 (Qty 1)

1шт.

10

84251296

HOSE ASSY.,6.3mm ID x 1250mm L

From Comfort Steer Solenoid to Pump Steering

1шт.

11

84252231

HOSE ASSY.,10mm ID x 1866mm L

Comfort Steer Solenoid to Pump Steering

1шт.

12

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

13

84514720

HOSE ASSY.,10mm ID x 422mm L

From Comfort Steer Solenoid to Pump Oil Line

1шт.

14

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

ASSY, Incl 15 - 17

3шт.

15

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

16

NSS

NOT SOLD SEPARAT

Connector, Incl in 14

3шт.

17

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

18

86624132

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

ASSY, Incl 8 (Qty 1), 19

1шт.

19

NSS

NOT SOLD SEPARAT

Tee, Incl in 18

1шт.
