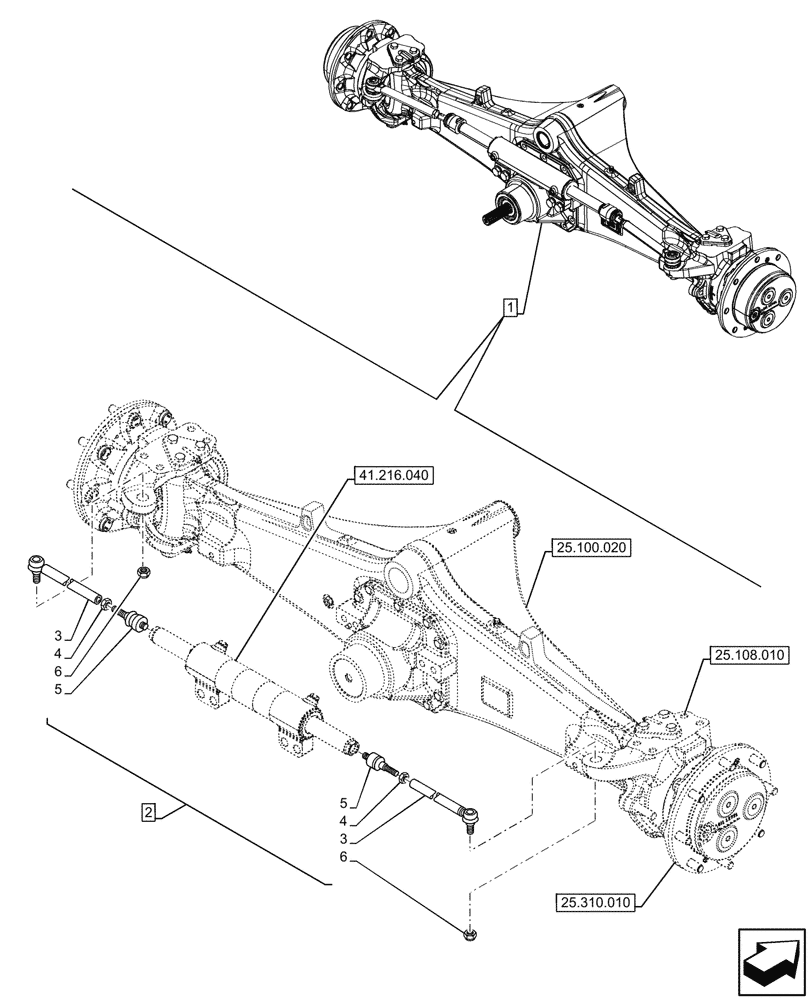

Запчасти Case 580SN (41.106.040) - FRONT AXLE, STEERING TIE-ROD, STD, 4WD (41) - STEERING

1

47559839

FRONT AXLE

ASSY, Grey, PS1321 ACP, 12.1-1, Incl 2 - 6

1шт.

See also Front Axle Components in Figures 25.100.020, 25.100.030, 25.102.010, 25.102.020, 25.108.010, 25.108.020, 25.108.030, 25.108.040, 25.310.010, 41.216.040

1шт.

2

84264409

STEERING TIE-ROD

ASSY, Incl 3 - 6

1шт.

3

84276564

BALL JOINT,399mm L

Tie Rod

1шт.

4

10726611

THIN NUT,Thin, M18, 1.5mm Pitch, Cl 04, ZND

1шт.

5

87489981

BALL JOINT,399mm L

Tie Rod

1шт.

6

87489980

NUT,M18 x 1.5, Cl. 8

1шт.
