(35.739.030) - BACKHOE ARM, SLEWING/SWING, CYLINDER

Запчасти Case 580SN (35.739.030) - BACKHOE ARM, SLEWING/SWING, CYLINDER (35) - HYDRAULIC SYSTEMS

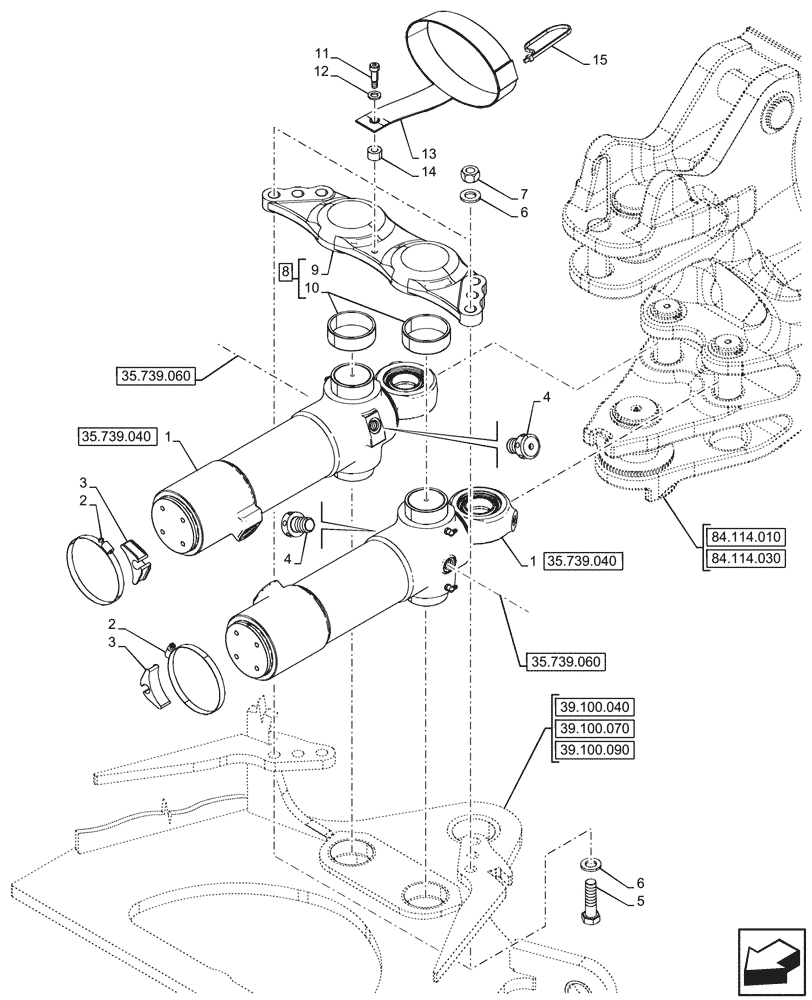

Схема запчастей Case 580SN - (35.739.030) - BACKHOE ARM, SLEWING/SWING, CYLINDER (35) - HYDRAULIC SYSTEMS
35.739.060
2
15
4
9
2
1
11
14
3
10
4
3
7
13
1
8
5
6
12
6
35.739.040
35.739.040
84.114.030
39.100.040
84.114.010
39.100.070
39.100.090
35.739.060
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84428583

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 101.6mm Bore, 292mm Stroke

ASSY, Grey, Swing

2шт.

2

214-1492

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

2шт.

3

D142787

SPACER

2шт.

4

124690A1

RESTRICTOR

2шт.

5

827-20075

BOLT,Hex, M20 x 2.5 x 75mm, Cl 10.9, Full Thd

6шт.

6

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

12шт.

7

829-1420

NUT,M20, Cl 10

6шт.

8

84336208

BEAM

ASSY, Power Tan, Incl 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Beam, Incl in 8

1шт.

10

114318A1

BUSHING,80.19mm ID x 90mm OD x 29.35mm L

2шт.

11

84348245

SCREW,Hex Soc, M10 x 12 x 25mm, Cl 12.9

1шт.

12

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

13

84348263

STRAP,571.5mm L x 50.8mm W

1шт.

14

84348221

SPACER,12.5mm ID x 26mm OD x 16mm L

1шт.

15

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.
