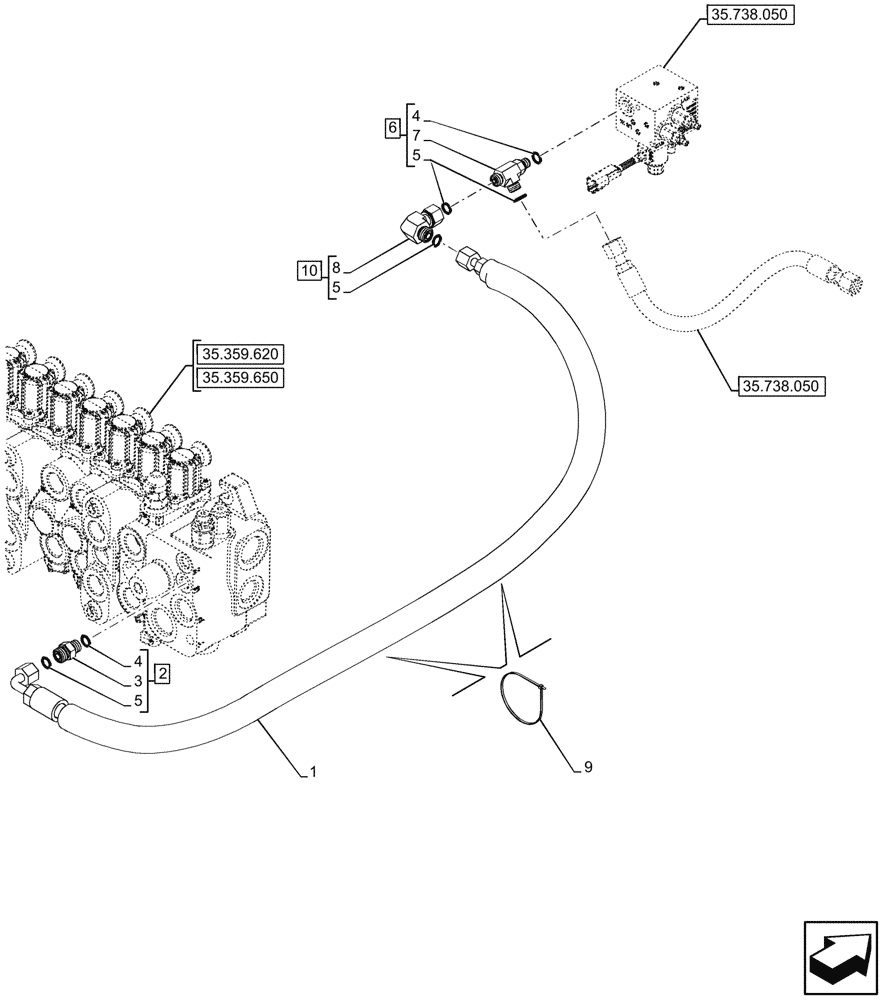

Запчасти Case 580SN (35.738.060) - HYDRAULIC LIFT, PILOT CONTROLS, LINES (35) - HYDRAULIC SYSTEMS

1

84523972

HYDRAULIC HOSE,10mm ID, 1410mm L, SAE100R16 type S

from 8 Spool Valve L Port to Heavy Lift Valve LS IN Port

1шт.

2

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

ASSY, Incl 3, 4 (Qty 1), 5 (Qty 1)

1шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

4

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

5

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

6

87305436

HYD CONNECTOR

ASSY, Incl 4 (Qty 1), 5 (Qty 2), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Tee, Incl in 6

1шт.

8

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 10

1шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

10

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

ASSY, Incl 5 (Qty 1), 8

1шт.
