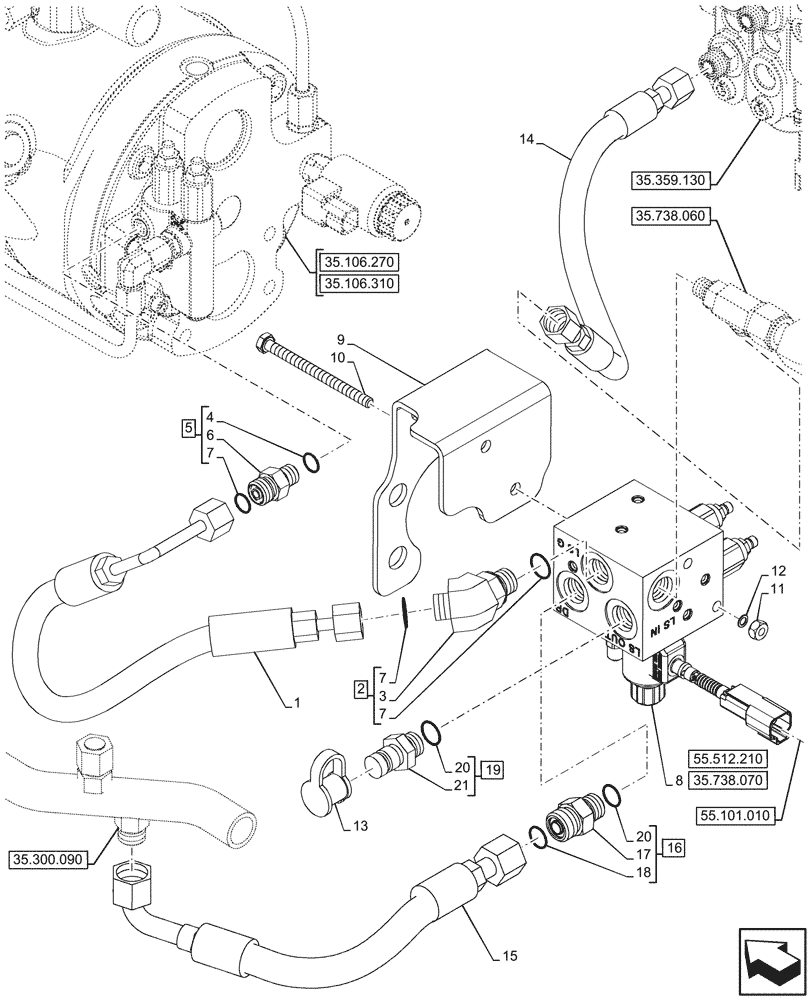

Запчасти Case 580SN (35.738.050) - HYDRAULIC LIFT, PILOT CONTROLS, VALVE, LINES (35) - HYDRAULIC SYSTEMS

1

84332166

HOSE ASSY.,6.3mm ID x 372mm L

from Heavy Lift Valve LS G Port to Variable Pump X Port

1шт.

2

201-328

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

ASSY, Incl 3, 7 (Qty 2)

1шт.

3

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 2

1шт.

4

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

5

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

ASSY, Incl 4, 6, 7 (Qty 1)

1шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

7

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

8

84527718

CONTROL VALVE

ASSY, Heavy Lift Pilot Control

1шт.

9

84333112

BRACKET

Valve Mounting

1шт.

10

814-6080

BOLT,Hex, M6 x 1 x 80mm, Cl 8.8

2шт.

11

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

12

892-11006

LOCK WASHER,M6

2шт.

13

H434163

DUST CAP

1шт.

14

84523975

HYDRAULIC HOSE,10mm ID, 384mm L, SAE100R16 type S

1шт.

15

84252236

HYD TUBE,10mm ID x 262mm L

10mm ID, 262mm L, from Heavy Lift Valve DR Port to Manifold Return

1шт.

16

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

ASSY, Incl 17, 18, 20 (Qty 1)

1шт.

17

NSS

NOT SOLD SEPARAT

Connector, Incl in 16

1шт.

18

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

19

86596853

QUICK MALE COUPLING,9/16"-18

ASSY, Incl 20 (Qty 1), 21

1шт.

20

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

21

NSS

NOT SOLD SEPARAT

Quick Coupler, Incl in 19

1шт.
