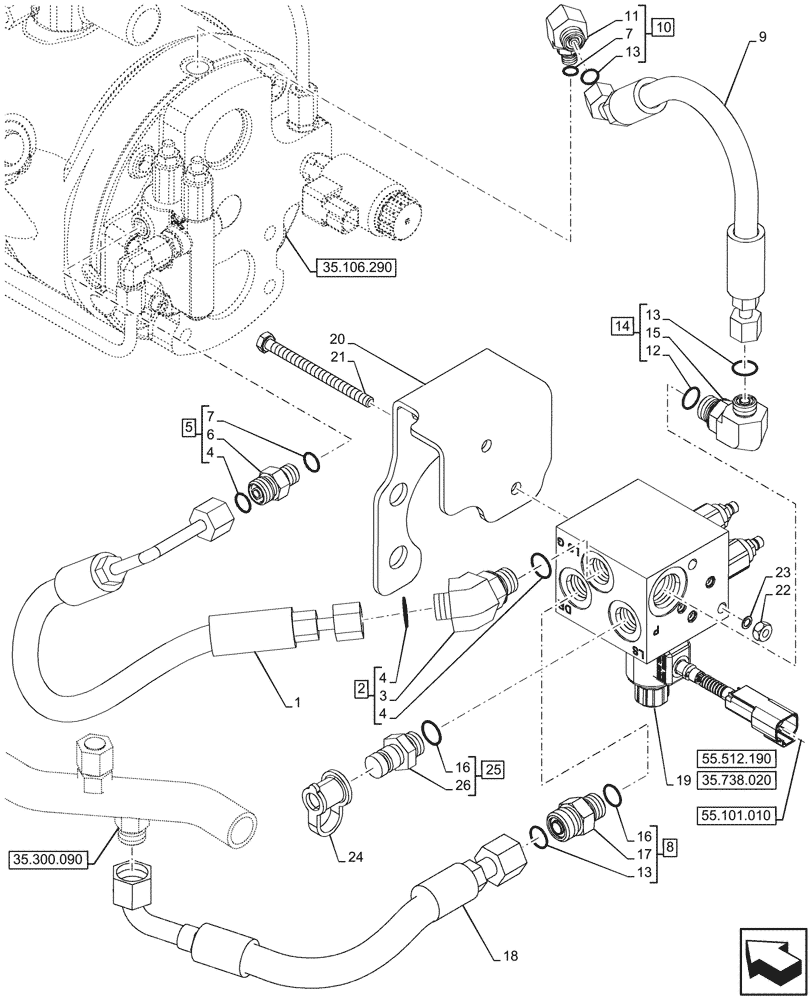

Запчасти Case 580SN (35.738.010) - VAR - 423080 - HYDRAULIC LIFT, W/ MECHANICAL LIFT, VALVE, LINES (35) - HYDRAULIC SYSTEMS

1

84332166

HOSE ASSY.,6.3mm ID x 372mm L

from Heavy Lift Valve LS G Port to Hyd Pump X Port

1шт.

2

201-328

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

ASSY, Incl 3, 4 (Qty 2)

1шт.

3

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 2

1шт.

4

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

5

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

ASSY, Incl 4 (Qty 1), 6, 7 (Qty 1)

1шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

7

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

8

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

ASSY, Incl 13 (Qty 1), 16 (Qty 1), 17

1шт.

9

84332151

HOSE ASSY.,10mm ID x 374mm L

from Heavy Lift Valve LS IN Port to Hyd Pump MB Port

1шт.

10

9843592

ELBOW,11/16"-16 UN-2A x 7/16"-20UN-2A

ASSY, Incl 7 (Qty 1), 11, 13 (Qty 1)

1шт.

11

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 10

1шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

14

201-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ASSY, Incl 12, 13 (Qty 1), 15

1шт.

15

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 14

1шт.

16

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

17

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

1шт.

18

84252236

HYD TUBE,10mm ID x 262mm L

from Heavy Lift Valve DR Port to Manifold Return

1шт.

19

84527714

CONTROL VALVE

ASSY, Heavy Lift

1шт.

20

84333112

BRACKET

Valve Mounting

1шт.

21

814-6080

BOLT,Hex, M6 x 1 x 80mm, Cl 8.8

2шт.

22

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

23

892-11006

LOCK WASHER,M6

2шт.

24

H434163

DUST CAP

1шт.

25

86596853

QUICK MALE COUPLING,9/16"-18

ASSY, Incl 16 (Qty 1), 26

1шт.

26

NSS

NOT SOLD SEPARAT

Quick Coupler, Incl in 25

1шт.
