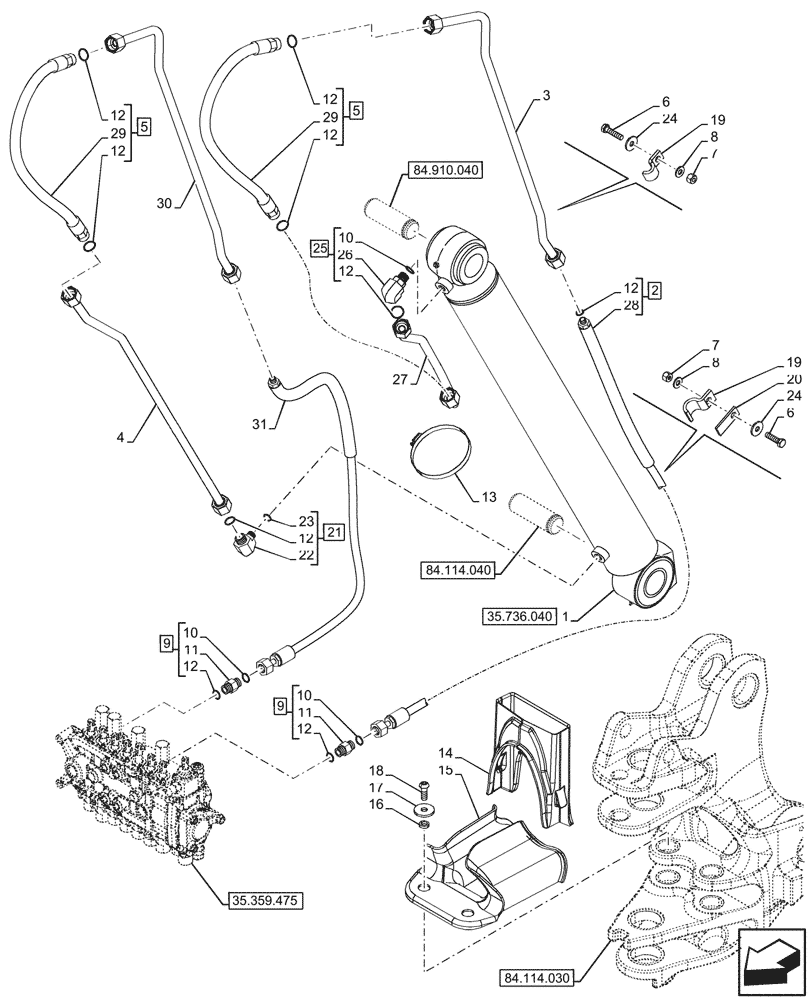

Запчасти Case 580SN (35.736.030) - BACKHOE BOOM CYL. SECTION, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

1

84421588

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 127.0mm Bore, 971.6mm Stroke

ASSY, Grey, Boom

1шт.

2

84257632

HYDRAULIC HOSE,15.88mm ID x 2043mm L, SAE 100R16

ASSY, Valve to Boom, Incl 12 (Qty 1), 28

1шт.

3

48002248

HYD TUBE

Boom Cylinder Head End

1шт.

4

48001762

HYD TUBE

Boom Cylinder Rod

1шт.

5

48001955

HYDRAULIC HOSE

ASSY, Boom Cylinder Rod, Incl 12 (Qty 4), 29

2шт.

6

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

4шт.

7

412141

NUT,M10 x 1.5, Cl 8

4шт.

8

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

9

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 10 (Qty 2), 11, 12 (Qty 2)

2шт.

10

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

2шт.

12

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

9шт.

13

214-31104

HOSE CLAMP,5-3/4" - 6-5/8", HD Worm

3шт.

14

84574630

GUARD

Black

1шт.

15

84303525

GUARD

Black

1шт.

16

84286039

SPACER,13.87mm ID x 21.34mm OD x 5.4mm Thk

2шт.

17

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

2шт.

18

84299393

HEX SOC SCREW,Hex Socket Button Head, M12 x 1.75 x 35mm, Cl. 10.9

2шт.

19

84367726

CLAMP,3/4" Clamping tube

4шт.

20

84259030

SPACER

2шт.

21

87656136

HYD CONNECTOR

ASSY, Incl 12 (Qty 1), 22, 23

1шт.

22

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 21

1шт.

23

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

4шт.

25

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

ASSY, Incl 10 (Qty 1), 12 (Qty 1), 26

1шт.

26

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 25

1шт.

27

48000440

HYD TUBE

Boom Cylinder Head

1шт.

28

NSS

NOT SOLD SEPARAT

Hose, Incl in 2

1шт.

29

NSS

NOT SOLD SEPARAT

Tube, Incl in 5

2шт.

30

48002163

HYD TUBE

Boom Cylinder Rod End

1шт.

31

84263635

HYDRAULIC HOSE,15.88mm ID x 2064mm L, SAE 100R16

Valve to Boom

1шт.
