Запчасти Case 580SN (35.734.210) - STANDARD DIPPER, HYDRAULIC COUPLER, LINE (35) - HYDRAULIC SYSTEMS

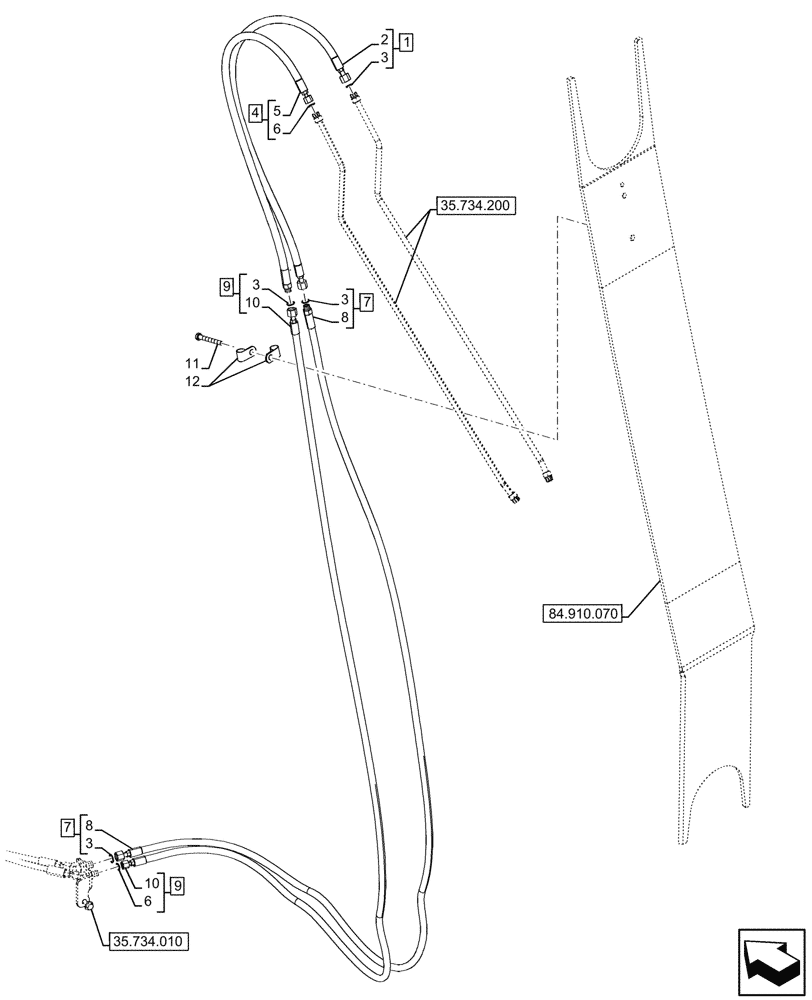

Схема запчастей Case 580SN - (35.734.210) - STANDARD DIPPER, HYDRAULIC COUPLER, LINE (35) - HYDRAULIC SYSTEMS
35.734.010
4
8
8
3
3
3
5
6
2
9
7
9
11
7
1
3
6
10
10
12
35.734.200
84.910.070

Артикул

Название

Примечание

Количество

1

84343158

HOSE ASSY.,6.3mm ID x 1119mm L

Coupler Boom to Dipper LH, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

4

84343134

HOSE ASSY.,6.3mm ID x 1103mm L

Coupler Boom to Dipper RH, Incl 5, 6 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

Hose, Incl in 4

1шт.

6

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

7

84336702

HOSE ASSY.,6.3mm ID x 2878mm L

Coupler Boom, Incl 3 (Qty 2), 8

1шт.

8

NSS

NOT SOLD SEPARAT

Hose, Incl in 7

1шт.

9

84336704

HOSE ASSY.,6.3mm ID x 2836mm L

Coupler Boom, Incl 3 (Qty 1), 6 (Qty 1), 10

1шт.

10

NSS

NOT SOLD SEPARAT

Hose, Incl in 9

1шт.

11

BER120116

SCREW

1шт.

12

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

2шт.

Выбрано товаров: 12
