(35.734.160) - DOUBLE, QUICK COUPLER, VALVE, COMPONENTS

Запчасти Case 580SN (35.734.160) - DOUBLE, QUICK COUPLER, VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

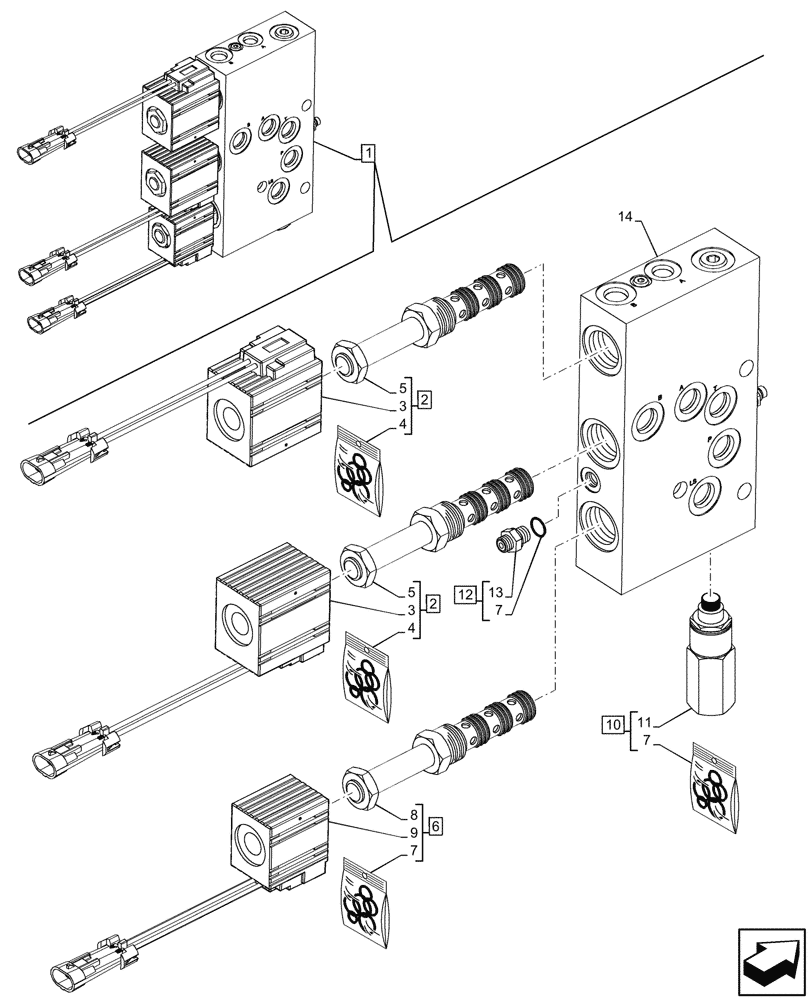

Схема запчастей Case 580SN - (35.734.160) - DOUBLE, QUICK COUPLER, VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
4
7
5
11
3
7
12
14
8
10
5
6
3
1
4
7
2
2
9
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87435910

SOLENOID VALVE

ASSY, Hydraulic Coupler Double, Incl 2 - 14

1шт.

2

87438021

SOLENOID VALVE

ASSY, W/Coil, Incl 3 - 5

2шт.

3

87438022

HYDRAULIC VALVE

Cartridge

2шт.

4

87438024

SEAL KIT

4-Way Solenoid

2шт.

5

87438023

COIL

2шт.

6

87438025

SOLENOID VALVE

ASSY, Incl 7 (Qty 1), 8, 9

1шт.

7

87438028

SEAL KIT

2-Way Solenoid

3шт.

8

87438027

COIL

1шт.

9

87438026

HYDRAULIC VALVE

Cartridge

1шт.

10

84200896

VALVE PRESSURE RELIE

ASSY, TLB Coupler, Incl 7 (Qty 1), 11

1шт.

11

NSS

NOT SOLD SEPARAT

Valve, Incl in 10

1шт.

12

87438029

VALVE, CHECK

ASSY, Incl 7 (Qty 1), 13

1шт.

13

NSS

NOT SOLD SEPARAT

Valve, Incl in 12

1шт.

14

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.
