(35.734.040) - QUICK COUPLER, VALVE

Запчасти Case 580SN (35.734.040) - QUICK COUPLER, VALVE (35) - HYDRAULIC SYSTEMS

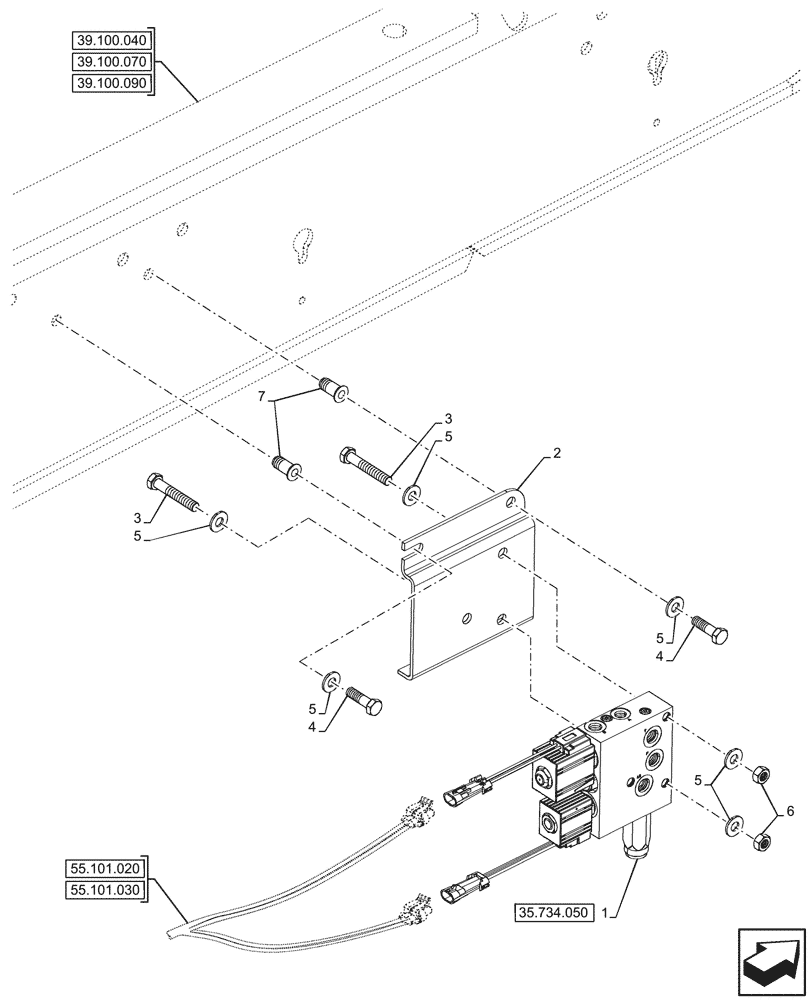

Схема запчастей Case 580SN - (35.734.040) - QUICK COUPLER, VALVE (35) - HYDRAULIC SYSTEMS
55.101.030
6
5
5
5
3
2
7
4
3
4
5
1
5
55.101.020
35.734.050
39.100.040
39.100.070
39.100.090
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87435909

SOLENOID VALVE

ASSY, Hydraulic Coupler

1шт.

2

84275116

BRACKET

Coupler Valve

1шт.

3

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

4

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

5

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

6шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

7

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

2шт.
