(35.723.060) - BUCKET CYLINDER, LINE

Запчасти Case 580SN (35.723.060) - BUCKET CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

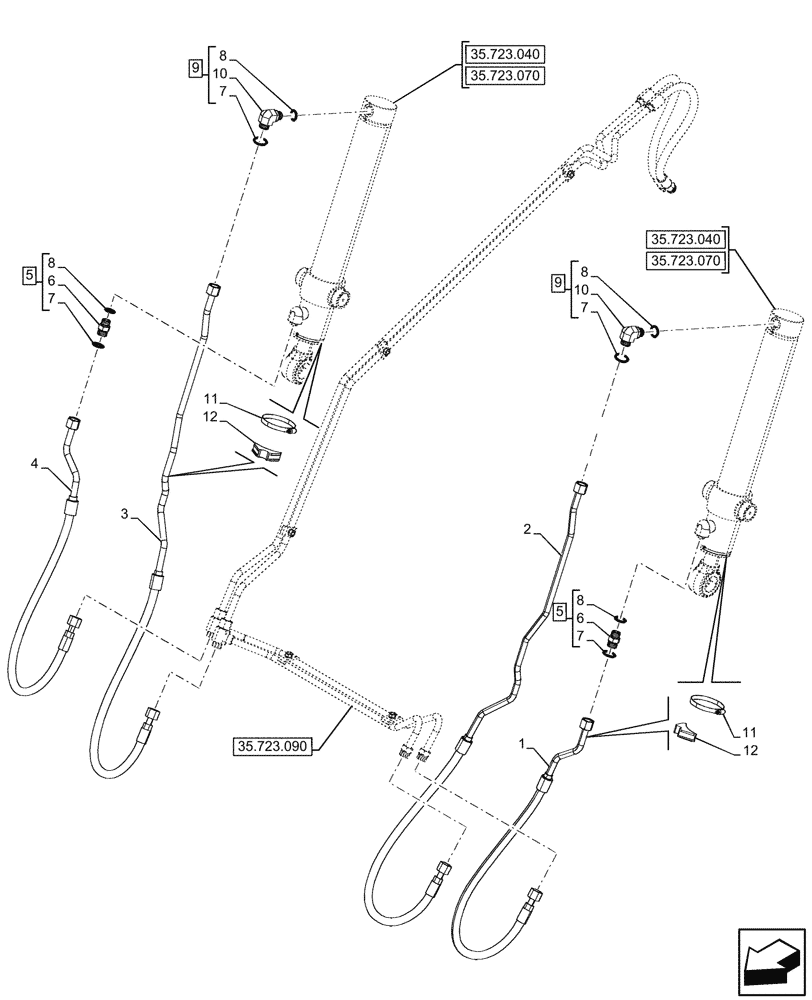

Схема запчастей Case 580SN - (35.723.060) - BUCKET CYLINDER, LINE (35) - HYDRAULIC SYSTEMS
35.723.090
2
7
9
10
12
12
10
11
4
7
8
7
3
6
5
8
9
7
8
1
5
11
8
6
35.723.070
35.723.070
35.723.040
35.723.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84307497

HYD TUBE

RH, Dump Lower

1шт.

2

84399671

TUBE

LH, Dump Port A

1шт.

3

84399689

TUBE

RH, Dump Port A

1шт.

4

84307492

HYD TUBE

RH, Dump Lower

1шт.

5

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

ASSY, Incl 6, 7 (Qty 2), 8 (Qty 2)

2шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

9

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

ASSY, Incl 7 (Qty 2), 8 (Qty 2), 10

2шт.

10

NSS

NOT SOLD SEPARAT

90 Elbow, Incl in 9

2шт.

11

9706924

HOSE CLAMP,103.1mm - 127mm

2шт.

12

L79937

SADDLE

2шт.
