(35.703.040) - STABILIZER CYLINDER

Запчасти Case 580SN (35.703.040) - STABILIZER CYLINDER (35) - HYDRAULIC SYSTEMS

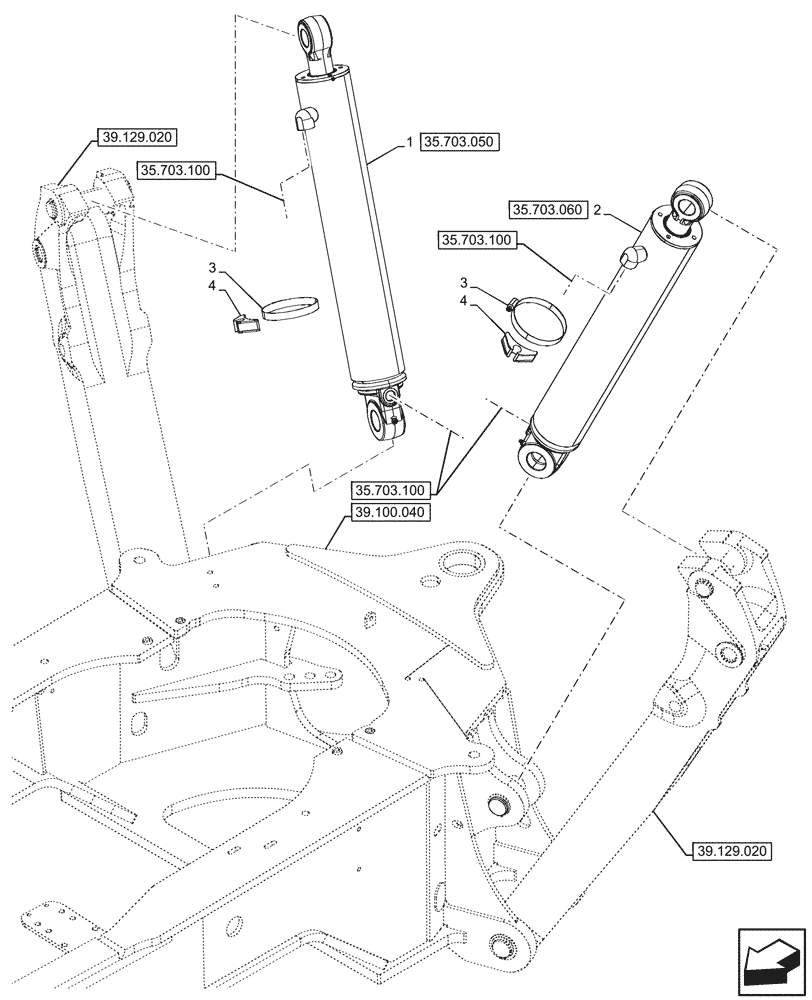

Схема запчастей Case 580SN - (35.703.040) - STABILIZER CYLINDER (35) - HYDRAULIC SYSTEMS
39.129.020
4
3
2
4
1
3
35.703.050
35.703.060
35.703.100
35.703.100
35.703.100
39.100.040
39.129.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84421606

HYDRAULIC CYLINDER,Double Acting, 57.2mm Rod, 114.3mm Bore, 542.9mm Stroke

ASSY, Grey, Stabilizer RH

1шт.

2

84421605

HYDRAULIC CYLINDER,Double Acting, 57.2mm Rod, 114.3mm Bore, 542.9mm Stroke

ASSY, Grey, Stabilizer LH

1шт.

3

84333574

HOSE CLAMP,5.25" - 6.12", Worm Gear

2шт.

4

D142787

SPACER

2шт.

Выбрано товаров: 4
