(35.701.500) - LOADER, CONTROL VALVE, 3-SPOOL, PILOT CONTROLS, W/O RIDE CONTROL, LINES

Запчасти Case 580SN (35.701.500) - LOADER, CONTROL VALVE, 3-SPOOL, PILOT CONTROLS, W/O RIDE CONTROL, LINES (35) - HYDRAULIC SYSTEMS

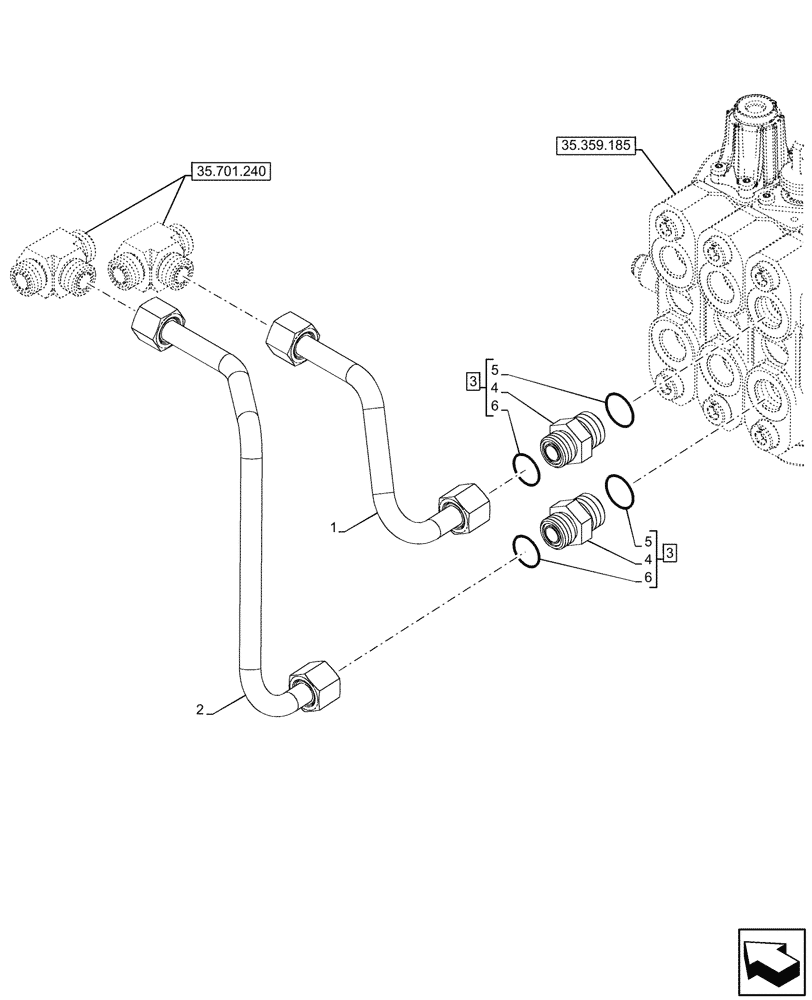

Схема запчастей Case 580SN - (35.701.500) - LOADER, CONTROL VALVE, 3-SPOOL, PILOT CONTROLS, W/O RIDE CONTROL, LINES (35) - HYDRAULIC SYSTEMS
35.359.185
5
3
1
6
5
6
3
4
4
2
35.701.240
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84293669

TUBE

Loader Lift Port A

1шт.

2

84293671

TUBE

Loader Lift Port B

1шт.

3

83962539

HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB

ASSY, Incl 4 - 6

2шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

2шт.

5

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

6

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

Выбрано товаров: 6
