(35.701.310) - VAR - 747864 - LOADER BUCKET, AUXILIARY HYDRAULIC, W/ PILOT CONTROLS

Запчасти Case 580SN (35.701.310) - VAR - 747864 - LOADER BUCKET, AUXILIARY HYDRAULIC, W/ PILOT CONTROLS (35) - HYDRAULIC SYSTEMS

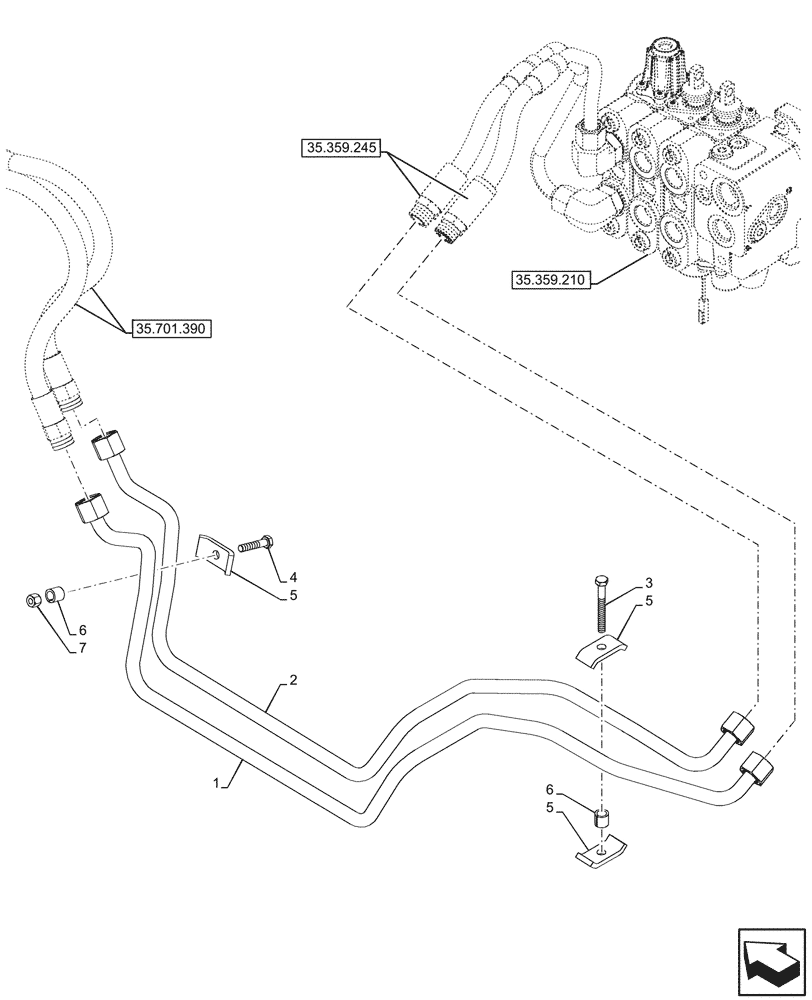

Схема запчастей Case 580SN - (35.701.310) - VAR - 747864 - LOADER BUCKET, AUXILIARY HYDRAULIC, W/ PILOT CONTROLS (35) - HYDRAULIC SYSTEMS
35.701.390
5
2
5
7
6
6
5
3
1
4
35.359.210
35.359.245
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84293011

TUBE

From Valve to Cylinder Line, 4N1 Port A

1шт.

2

84293009

TUBE

From Valve to Cylinder Line, 4N1 Port B

1шт.

3

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

1шт.

4

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

5

D138055

CLAMP

3шт.

6

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

2шт.

7

16104121

NUT,M8 x 1.25, Cl 10

1шт.
