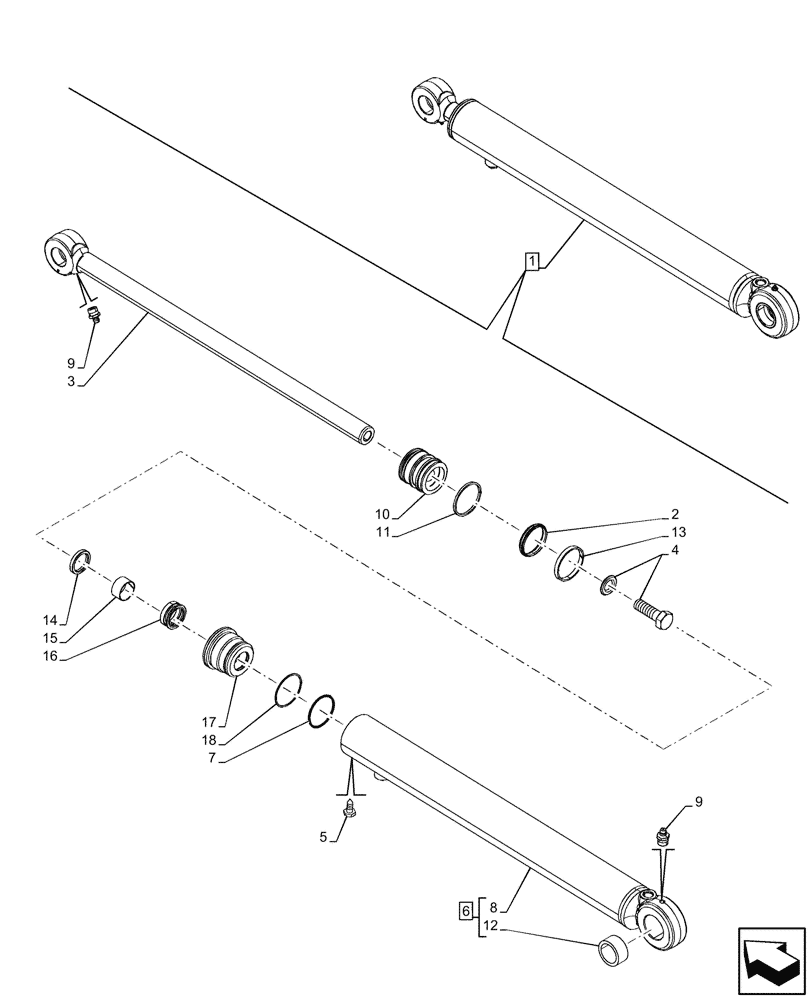

Запчасти Case 580SN (35.701.050) - LIFT CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84560014

HYDRAULIC CYLINDER,44.4mm Rod, 733mm Stroke

ASSY, Grey, Incl 2 - 18

1шт.

2

87715782

SEAL,82.6mm OD

1шт.

3

84237793

ROD,44.4mm OD x 932.6mm L

Chrome

1шт.

4

86982438

SPECIAL BOLT,Hex, 14, 1 x 3"

1шт.

5

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

6

84243715

TUBE,82.6mm Bore Dia

ASSY, Incl 8, 12

1шт.

7

238-5233

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

1шт.

8

NSS

NOT SOLD SEPARAT

Tube, Incl in 6

1шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

10

84548461

PISTON

1шт.

11

192330A1

SEALING RING,75.3mm ID x 82.5mm OD x 4.7mm Thk

1шт.

12

1980335C1

BUSHING,50.19mm ID x 60mm OD x 19mm L

2шт.

13

S109445

RING,82.55mm OD, Ext

1шт.

14

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

15

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

16

1542875C1

SEAL KIT,44.4mm Rod

Lift Cylinder, Rod and Buffer

1шт.

17

84208516

GLAND

1шт.

18

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

1шт.
