(35.525.220) - MECHANICAL, CONTROLS, QUICK COUPLER, LINE

Запчасти Case 580SN (35.525.220) - MECHANICAL, CONTROLS, QUICK COUPLER, LINE (35) - HYDRAULIC SYSTEMS

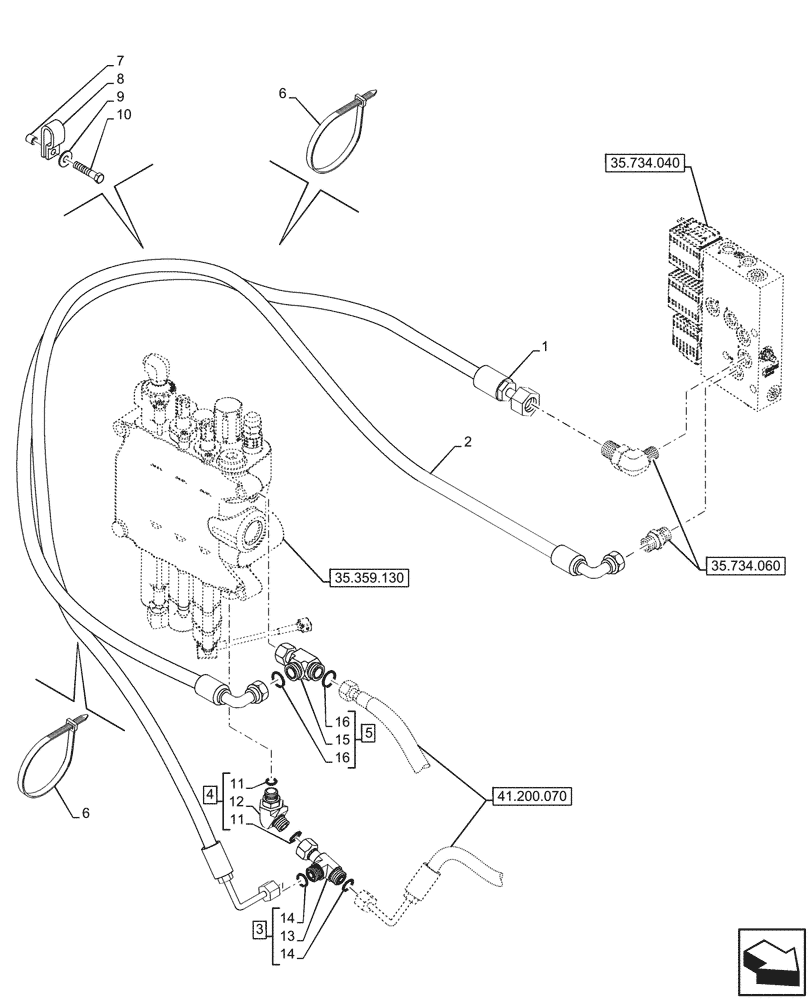

Схема запчастей Case 580SN - (35.525.220) - MECHANICAL, CONTROLS, QUICK COUPLER, LINE (35) - HYDRAULIC SYSTEMS
35.359.130
10
4
2
8
16
14
7
3
15
6
5
6
9
16
14
1
12
11
13
11
35.734.060
41.200.070
35.734.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84298502

HOSE ASSY.,10mm ID x 1732mm L, SAE 100R16 Type S

Quick Coupler Pressure

1шт.

2

84329300

HOSE ASSY.,6.3mm ID x 1796mm L, SAE 100R16 Type S

Quick Coupler LS

1шт.

3

83961945

TEE,9/16"-18 ORFS x 9/16"-18 Fem Sw Run

ASSY, Incl 13, 14

1шт.

4

83961740

ELBOW

ASSY, Incl 11, 12

1шт.

5

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

ASSY, Incl 15, 16

1шт.

6

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

7

84420571

SPACER,13.51mm ID x 19.05mm OD x 20mm L

1шт.

8

L302731

CLAMP,19mm D Clamping Pipes

1шт.

9

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

1шт.

10

86624980

BOLT,Hex, M12 x 65mm, Cl 10.9

1шт.

11

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

12

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 4

1шт.

13

NSS

NOT SOLD SEPARAT

Tee, Incl in 3

1шт.

14

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

15

NSS

NOT SOLD SEPARAT

Union Tee, Incl in 5

1шт.

16

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.
