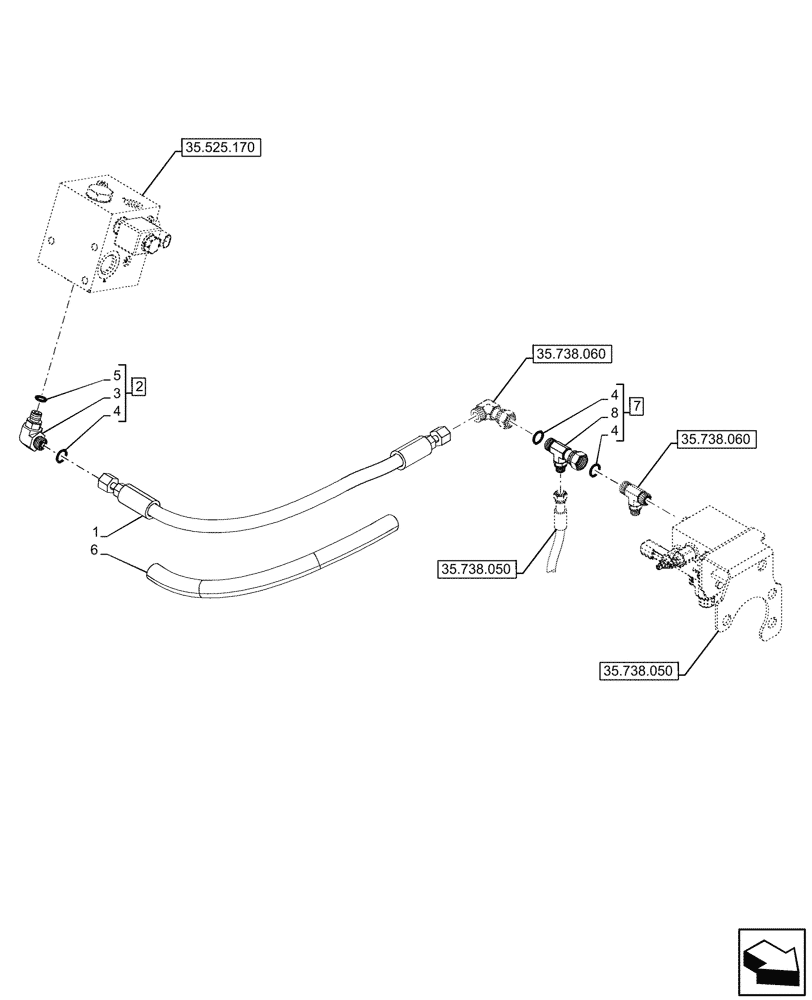

Запчасти Case 580SN (35.525.180) - VAR - 423084, 747662 - AUXILIARY HYDRAULIC, LINE (35) - HYDRAULIC SYSTEMS

1

84523981

HYDRAULIC HOSE,9.53mm ID x 550mm L, SAE 100R16

Hammer to Heavy Lift

1шт.

2

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

ASSY, Incl 3, 4 (Qty 1), 5

1шт.

3

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 2

1шт.

4

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

5

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

143219A1

HOSE PROTECTION,19mm ID x 24mm OD x 450mm L

1шт.

7

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

ASSY, Incl 4 (Qty 2), 8

1шт.

8

NSS

NOT SOLD SEPARAT

Tee, Incl in 7

1шт.
