(35.359.645) - 7-SPOOL, 8-SPOOL, BACKHOE CONTROL VALVE, DIPPER EXT SECTION, COMPONENTS

Запчасти Case 580SN (35.359.645) - 7-SPOOL, 8-SPOOL, BACKHOE CONTROL VALVE, DIPPER EXT SECTION, COMPONENTS (35) - HYDRAULIC SYSTEMS

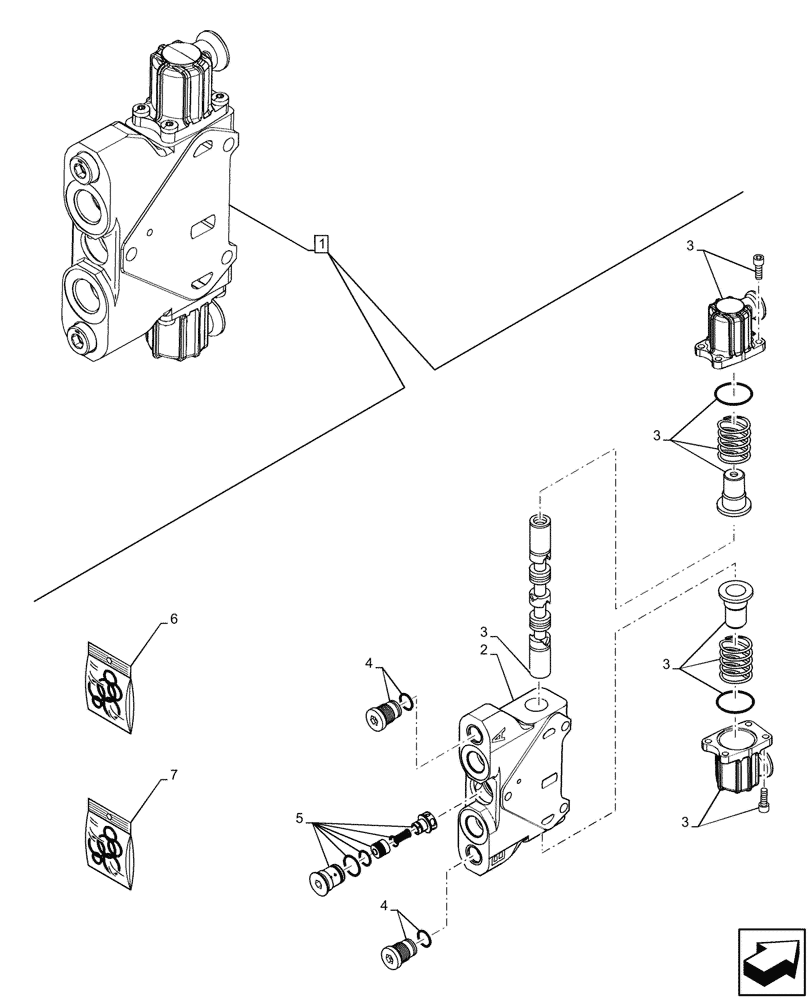

Схема запчастей Case 580SN - (35.359.645) - 7-SPOOL, 8-SPOOL, BACKHOE CONTROL VALVE, DIPPER EXT SECTION, COMPONENTS (35) - HYDRAULIC SYSTEMS
3
4
1
2
3
3
4
5
7
3
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84278692

HYD VALVE SECTION

ASSY, Extendable Dipper, Incl 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

3

85826344

KIT,Operation

1шт.

4

84232746

PLUG

2шт.

5

47422242

COMPENSATOR

1шт.

6

85825473

SEAL KIT

Backhoe Control Valve, Stabilizer, Boom & Dipper Sections

1шт.

7

87617657

O-RING KIT

Control Valve Section

1шт.
