(35.359.625) - 7-SPOOL, BACKHOE CONTROL VALVE, STANDARD DIPPER, W/ PILOT CONTROLS, W/DOUBLE AUXILIARY HYDRAULIC, COMPONENTS

Запчасти Case 580SN (35.359.625) - 7-SPOOL, BACKHOE CONTROL VALVE, STANDARD DIPPER, W/ PILOT CONTROLS, W/DOUBLE AUXILIARY HYDRAULIC, COMPONENTS (35) - HYDRAULIC SYSTEMS

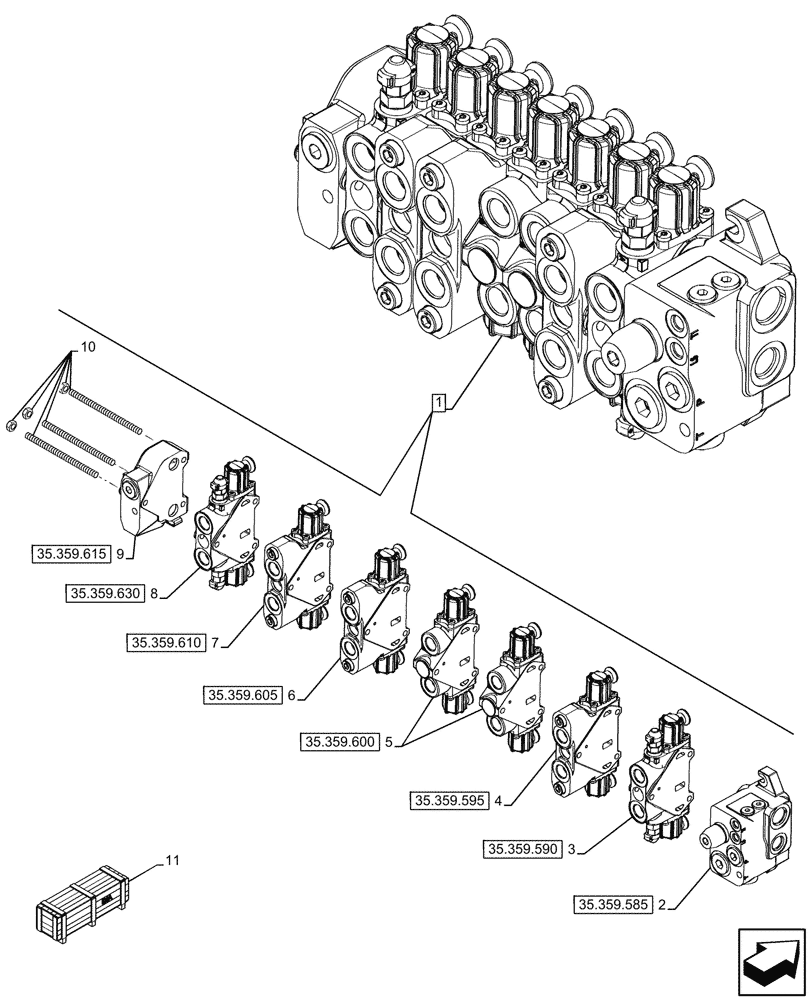

Схема запчастей Case 580SN - (35.359.625) - 7-SPOOL, BACKHOE CONTROL VALVE, STANDARD DIPPER, W/ PILOT CONTROLS, W/DOUBLE AUXILIARY HYDRAULIC, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.359.595
2
6
3
4
7
10
1
9
11
8
5
35.359.630
35.359.605
35.359.615
35.359.585
35.359.590
35.359.610
35.359.600
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84551842

CONTROL VALVE

ASSY, Backhoe 7 Spool Pilot Control, Incl 2 - 10

1шт.

2

84278712

HYD VALVE SECTION

ASSY, Inlet

1шт.

3

84586031

HYD VALVE SECTION

ASSY, Swing

1шт.

4

84278714

HYD VALVE SECTION

ASSY, Boom

1шт.

4

84278714R

REMAN-HYD VALVE

Reman ASSY, Boom

1шт.

4

84278714C

CORE-VALVE HYD

Core Return Number

1шт.

5

84157939

HYD VALVE SECTION

ASSY, Stabilizer

2шт.

6

84278710

HYD VALVE SECTION

ASSY, Dipper

1шт.

7

84278702

HYD VALVE SECTION

ASSY, Backhoe Bucket

1шт.

8

84278691

HYD VALVE SECTION

ASSY, BI-DIR Pilot Control

1шт.

9

85811915

HYD VALVE SECTION

ASSY, Outlet

1шт.

10

87751102

BOLT

1шт.

11

47670289

SERVICE KIT

Dual Auxiliary, Incl 8, 10

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 590SN (Livery) NRC Models Only, W/ Standard Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
