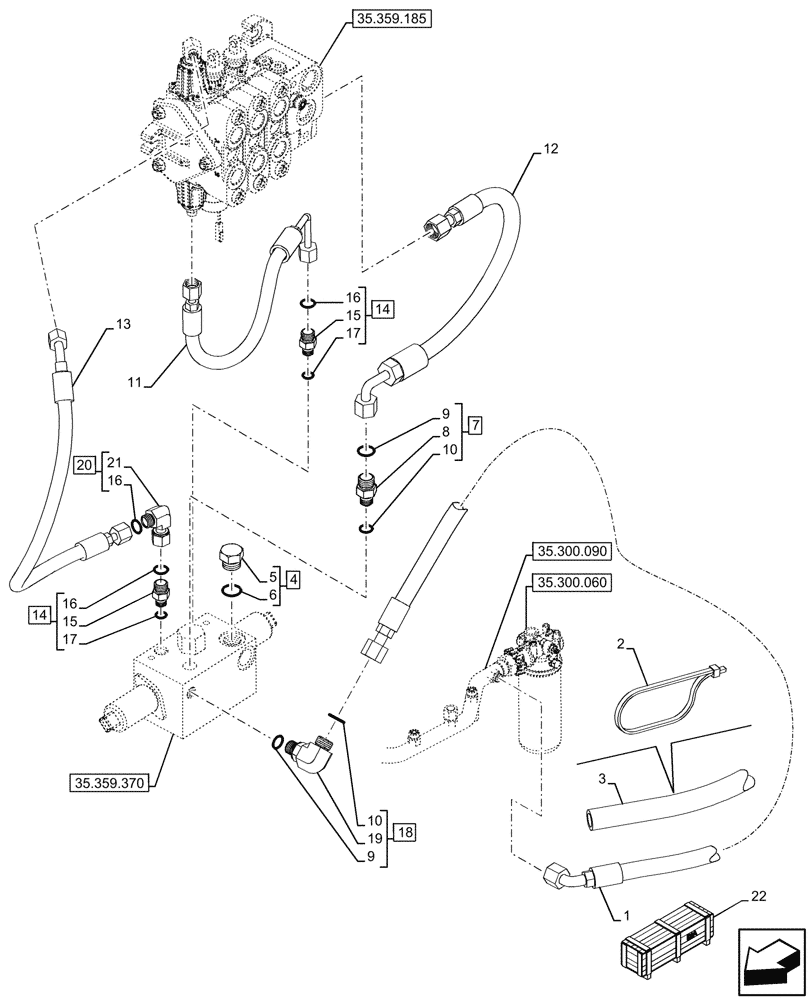

Запчасти Case 580SN (35.359.400) - LOADER, AUXILIARY CONTROL VALVE, OIL FILTER, LINE (35) - HYDRAULIC SYSTEMS

1

84255991

HOSE ASSY.,10mm ID x 1283mm L

Auxiliary Control Valve to Oil Filter Line

1шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

3

84284222

GUARD,19mm ID x 1140mm L

1шт.

4

218-5156

PLUG,Hex Hd, 3/4"-16 ORB

ASSY, Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Plug, Incl in 4

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

ASSY, Incl 8, 9 (Qty 1), 10 (Qty 1)

1шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

1шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

11

84255916

HOSE ASSY.,6.3mm ID x 343mm L

Auxiliary Control Valve to Loader Valve

1шт.

12

84255908

HOSE ASSY.,6.3mm ID x 444mm L

Clam Pressure, Auxiliary Control Valve to Loader Valve

1шт.

13

84255924

HOSE ASSY.,6.3mm ID x 573mm L

Auxiliary Control Valve to Loader Valve

1шт.

14

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

ASSY, Incl 15, 16 (Qty 2), 17

2шт.

15

NSS

NOT SOLD SEPARAT

Connector, Incl in 14

2шт.

16

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

17

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

18

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

ASSY, Incl 9 (Qty 1), 10 (Qty 1), 19

1шт.

19

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 18

1шт.

20

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

ASSY, Incl 16 (Qty 1), 21

1шт.

21

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 20

1шт.

22

47661818

CONSTRUCTION DIA

3 Spool Valve, Incl 1 - 20

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC, 590SN (Livery) NRC Models Only, W/ Standard Transmission and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

22

47788201

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 20

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC, 590SN (Livery) NRC Models Only, W/ Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
