(35.359.210) - VAR - 747864 - LOADER, CONTROL VALVE, PILOT CONTROLS, 3-SPOOL, MOUNTING

Запчасти Case 580SN (35.359.210) - VAR - 747864 - LOADER, CONTROL VALVE, PILOT CONTROLS, 3-SPOOL, MOUNTING (35) - HYDRAULIC SYSTEMS

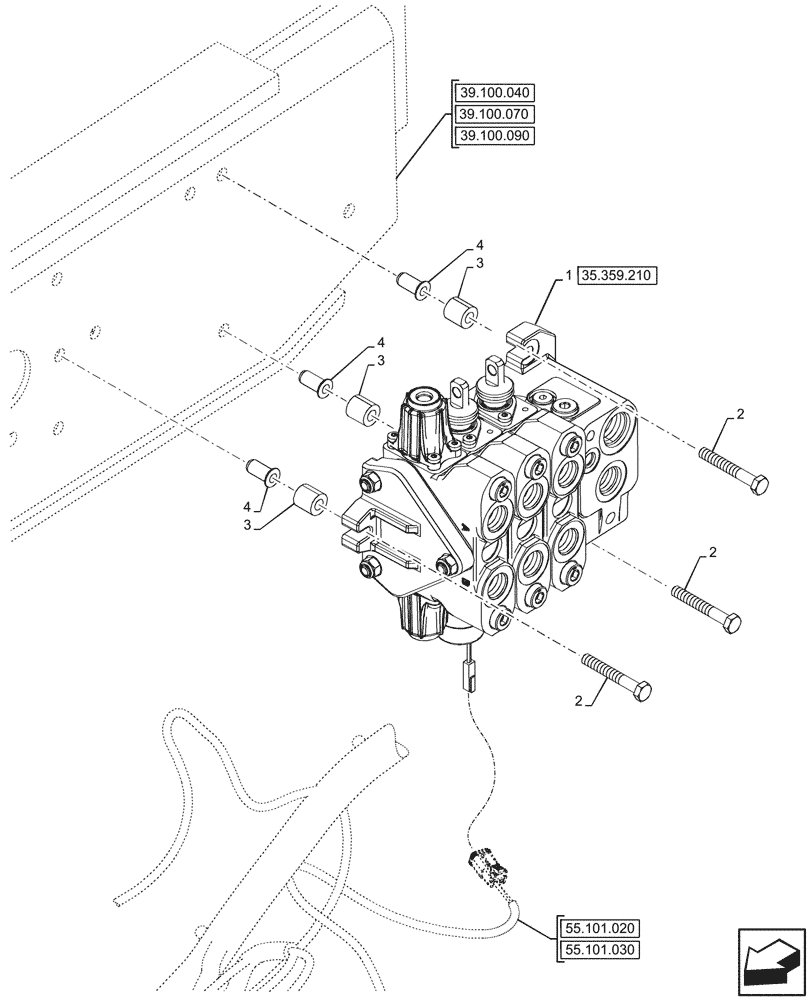

Схема запчастей Case 580SN - (35.359.210) - VAR - 747864 - LOADER, CONTROL VALVE, PILOT CONTROLS, 3-SPOOL, MOUNTING (35) - HYDRAULIC SYSTEMS
55.101.030
2
4
1
3
3
4
2
2
4
3
55.101.020
35.359.210
39.100.040
39.100.070
39.100.090
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84219974

VALVE

ASSY, Loader, 3-Spool

1шт.

2

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

3шт.

3

87585960

SPACER,11mm ID x 22mm OD x 22mm L

3шт.

4

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

3шт.

Выбрано товаров: 4
