(35.359.195) - LOADER, CONTROL VALVE, PILOT CONTROLS, 3-SPOOL, CLAM, VALVE SECTION

Запчасти Case 580SN (35.359.195) - LOADER, CONTROL VALVE, PILOT CONTROLS, 3-SPOOL, CLAM, VALVE SECTION (35) - HYDRAULIC SYSTEMS

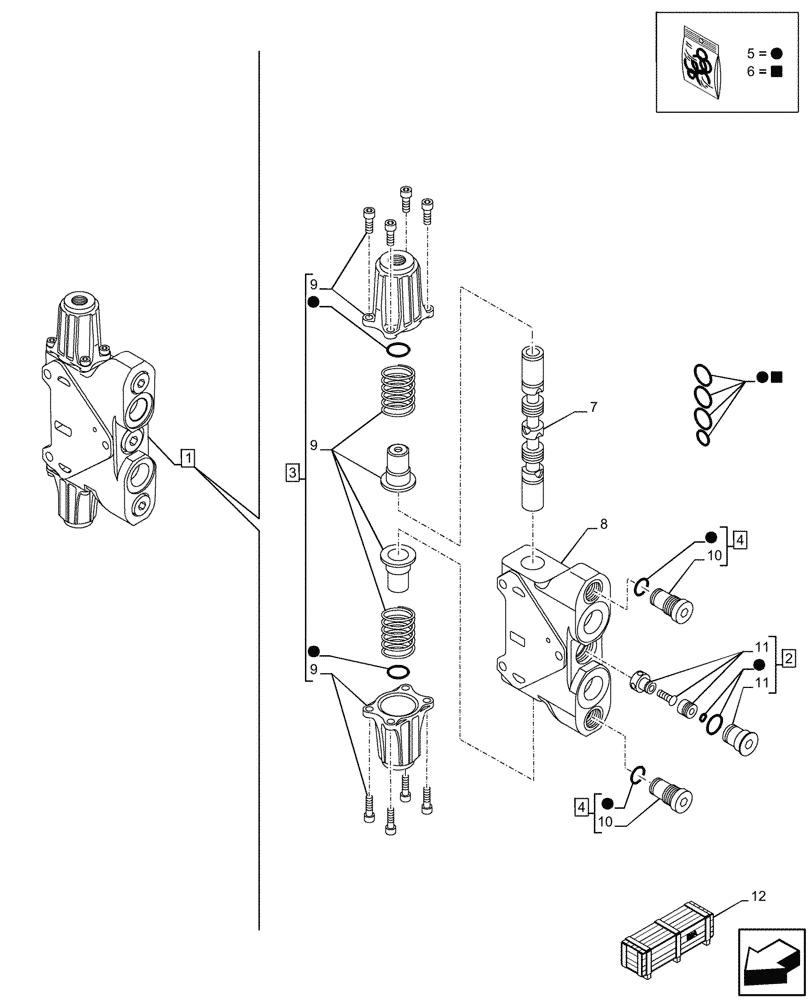

Схема запчастей Case 580SN - (35.359.195) - LOADER, CONTROL VALVE, PILOT CONTROLS, 3-SPOOL, CLAM, VALVE SECTION (35) - HYDRAULIC SYSTEMS
9
11
5
9
10
2
8
5
5
11
9
4
6
5
3
5
5
12
4
6
10
1
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84295102

HYD VALVE SECTION

ASSY, Loader Clam, Incl 2 - 11 & O-Ring

1шт.

2

47422242

COMPENSATOR

ASSY, Incl 11 & O-Rings

1шт.

3

87346914

KIT

ASSY, Operation, Incl 9 & O-Rings

1шт.

4

84232746

PLUG

ASSY, Incl 10 & O-Ring

2шт.

5

87617657

O-RING KIT

Control Valve Section

1шт.

6

85825473

SEAL KIT

Loader Valve Section

1шт.

7

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Operation Kit, Incl in 3

1шт.

10

NSS

NOT SOLD SEPARAT

Plug, Incl in 4

2шт.

11

NSS

NOT SOLD SEPARAT

Compensator, Incl in 2

1шт.

12

84484676

SERVICE KIT

Valve 3 Spool Section, Tie Rods, Incl 1 - 10

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC, 590SN (Livery) NRC Models only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
