(35.359.190) - LOADER, CONTROL VALVE, PILOT CONTROLS, 3-SPOOL, COMPONENTS

Запчасти Case 580SN (35.359.190) - LOADER, CONTROL VALVE, PILOT CONTROLS, 3-SPOOL, COMPONENTS (35) - HYDRAULIC SYSTEMS

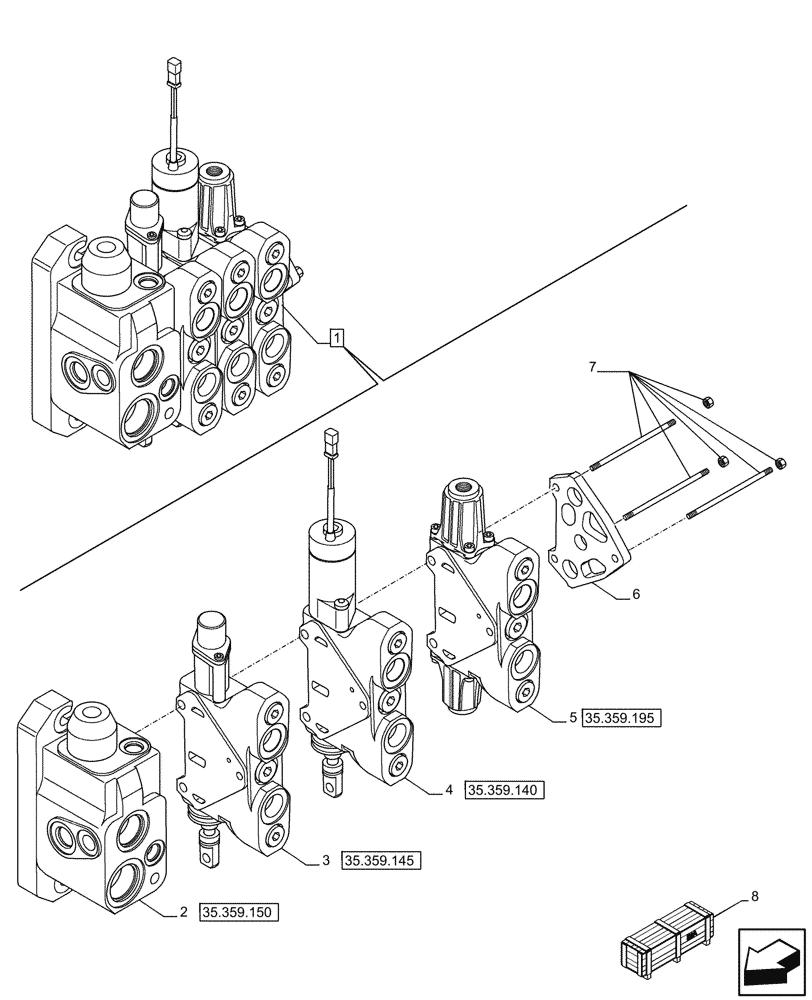

Схема запчастей Case 580SN - (35.359.190) - LOADER, CONTROL VALVE, PILOT CONTROLS, 3-SPOOL, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.359.145
1
5
3
8
7
4
6
2
35.359.150
35.359.140
35.359.195
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84219974

VALVE

ASSY, Loader, 3-Spool, Incl 2 - 7

1шт.

2

87751123

HYD VALVE SECTION

ASSY, Inlet

1шт.

3

84295100

HYD VALVE SECTION

ASSY, Loader Bucket

1шт.

4

84295097

HYD VALVE SECTION

ASSY, Loader Lift

1шт.

5

84295102

HYD VALVE SECTION

ASSY, Loader Clam

1шт.

6

87330847

OUTLET

1шт.

7

85825474

THREADED TIE-ROD,M10 x 193mm L

1шт.

8

84484676

SERVICE KIT

Valve 3 Spool Section, Tie Rods, Incl 5 - 7

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC, 590SN (Livery) NRC Models only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
