(35.359.175) - VAR - 747776 - LOADER, CONTROL VALVE, MECHANICAL, 3-SPOOL, MOUNTING

Запчасти Case 580SN (35.359.175) - VAR - 747776 - LOADER, CONTROL VALVE, MECHANICAL, 3-SPOOL, MOUNTING (35) - HYDRAULIC SYSTEMS

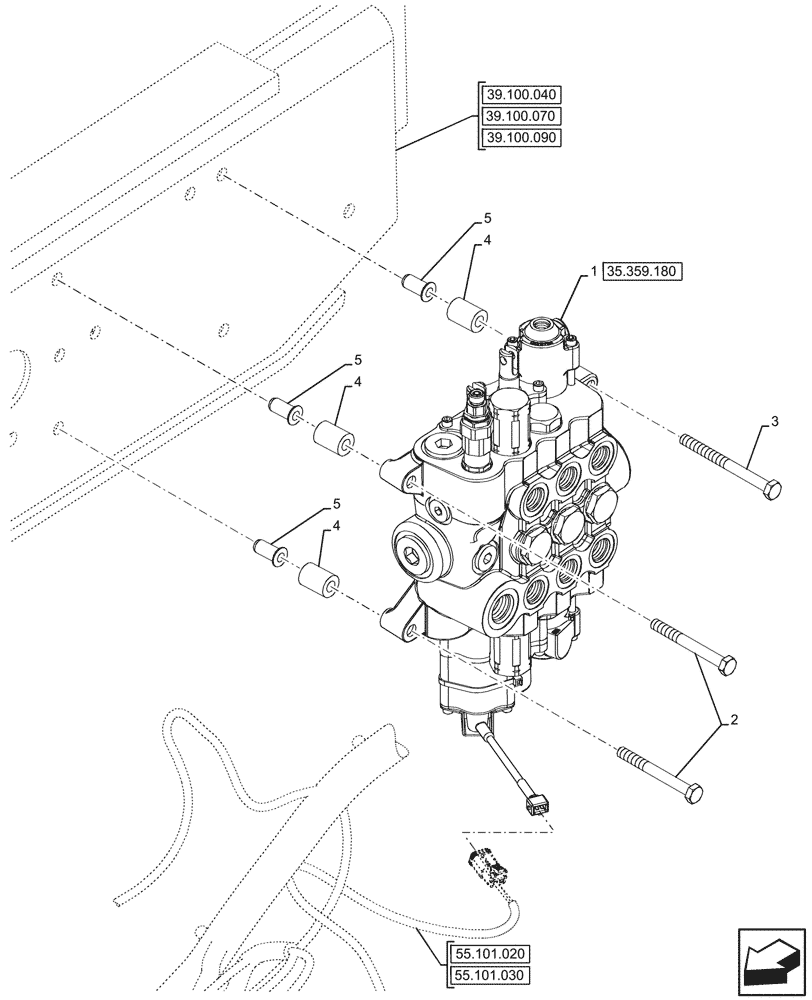

Схема запчастей Case 580SN - (35.359.175) - VAR - 747776 - LOADER, CONTROL VALVE, MECHANICAL, 3-SPOOL, MOUNTING (35) - HYDRAULIC SYSTEMS
55.101.030
4
4
3
5
5
4
5
1
2
55.101.020
35.359.180
39.100.040
39.100.070
39.100.090
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47907465

VALVE

ASSY, Loader, 3-Spool with Priority

1шт.

2

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

3

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

1шт.

4

87417599

SPACER,11mm ID x 22mm OD x 30mm Thk

3шт.

5

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

3шт.
