(35.359.160) - LOADER, FILTER, CONTROL VALVE LINE

Запчасти Case 580SN (35.359.160) - LOADER, FILTER, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS

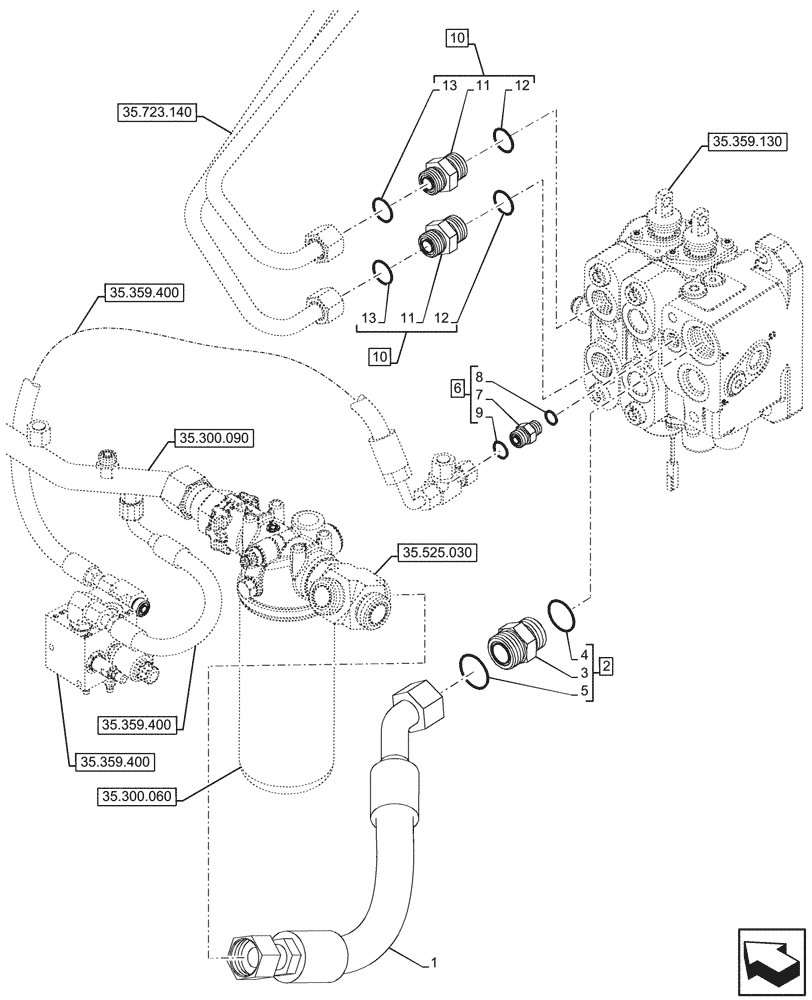

Схема запчастей Case 580SN - (35.359.160) - LOADER, FILTER, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS
35.359.130
12
6
8
9
11
13
7
10
2
10
13
11
12
1
4
5
3
35.525.030
35.300.090
35.359.400
35.359.400
35.359.400
35.723.140
35.300.060
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48043478

HYDRAULIC HOSE,25mm ID x 505mm L

Loader Valve to Filter

1шт.

2

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

4

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

5

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

6

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

ASSY, Incl 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

8

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

83962539

HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB

ASSY, Incl 11 - 13

2шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

2шт.

12

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

13

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.
