(35.359.145) - LOADER, CONTROL VALVE, PILOT CONTROLS, LOADER BUCKET, VALVE SECTION

Запчасти Case 580SN (35.359.145) - LOADER, CONTROL VALVE, PILOT CONTROLS, LOADER BUCKET, VALVE SECTION (35) - HYDRAULIC SYSTEMS

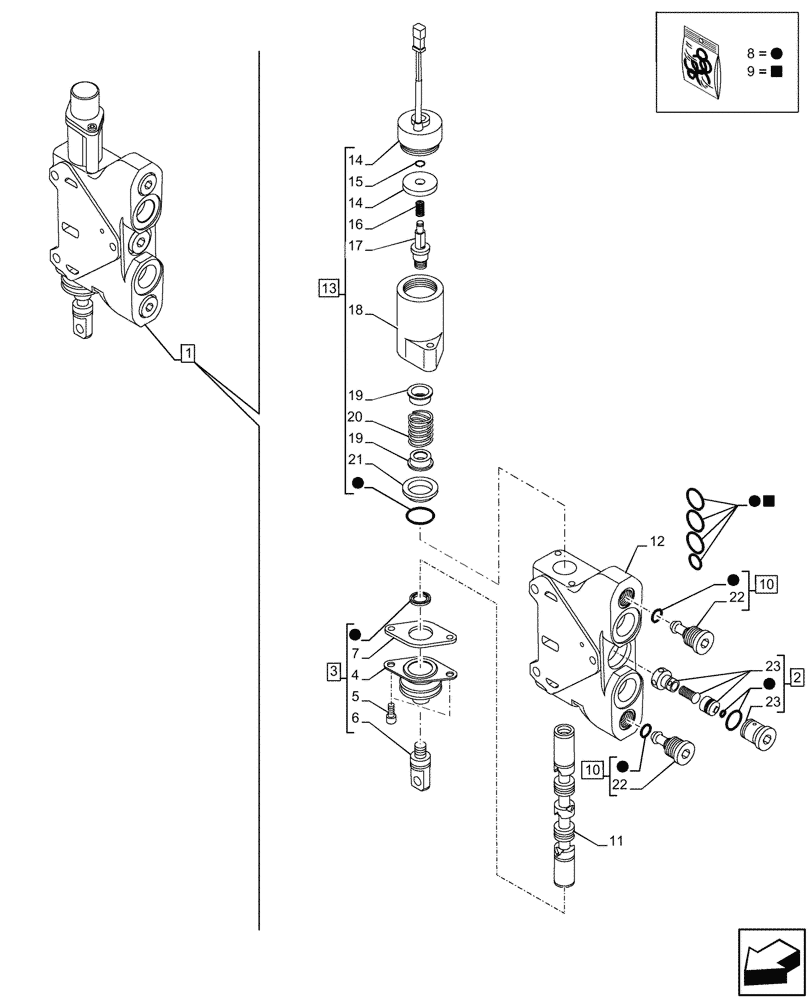

Схема запчастей Case 580SN - (35.359.145) - LOADER, CONTROL VALVE, PILOT CONTROLS, LOADER BUCKET, VALVE SECTION (35) - HYDRAULIC SYSTEMS
8
22
21
14
2
8
8
6
23
10
3
4
20
18
17
7
16
12
15
9
10
19
1
8
9
13
8
23
14
19
22
5
11
8
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84295100

HYD VALVE SECTION

ASSY, Loader Bucket, Incl 2 - 23 & O-Ring

1шт.

2

47422242

COMPENSATOR

ASSY, Incl 23 & O-Rings

1шт.

3

85824278

KIT

ASSY, Operating, Incl 4 - 7 & Seal

1шт.

4

85820130

BOOT

1шт.

5

NSS

NOT SOLD SEPARAT

Screw, Incl in 3

1шт.

6

NSS

NOT SOLD SEPARAT

Spool, Incl in 3

1шт.

7

NSS

NOT SOLD SEPARAT

Cover, Incl in 3

1шт.

8

87617657

O-RING KIT

Control Valve Section

1шт.

9

85825473

SEAL KIT

Loader Valve Section

1шт.

10

84295052

VALVE PRESSURE RELIE

ASSY, Incl 22 & O-Ring

2шт.

11

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

13

87754355

SERVICE KIT

ASSY, Electric Detent Operation, Incl 14 - 21 & O-Ring

1шт.

14

87754413

SERVICE KIT

Solenoid KIT

1шт.

15

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 13

1шт.

16

NSS

NOT SOLD SEPARAT

Spring, Incl in 13

1шт.

17

NSS

NOT SOLD SEPARAT

Valve, Incl in 13

1шт.

18

NSS

NOT SOLD SEPARAT

Housing, Incl in 13

1шт.

19

NSS

NOT SOLD SEPARAT

Cap, Incl in 13

1шт.

20

NSS

NOT SOLD SEPARAT

Spring, Incl in 13

1шт.

21

NSS

NOT SOLD SEPARAT

Plug, Incl in 13

1шт.

22

NSS

NOT SOLD SEPARAT

Valve, Incl in 10

2шт.

23

NSS

NOT SOLD SEPARAT

Compensator, Incl in 2

1шт.
