(35.359.130) - LOADER, CONTROL VALVE, PILOT CONTROLS, 2-SPOOL, MOUNTING

Запчасти Case 580SN (35.359.130) - LOADER, CONTROL VALVE, PILOT CONTROLS, 2-SPOOL, MOUNTING (35) - HYDRAULIC SYSTEMS

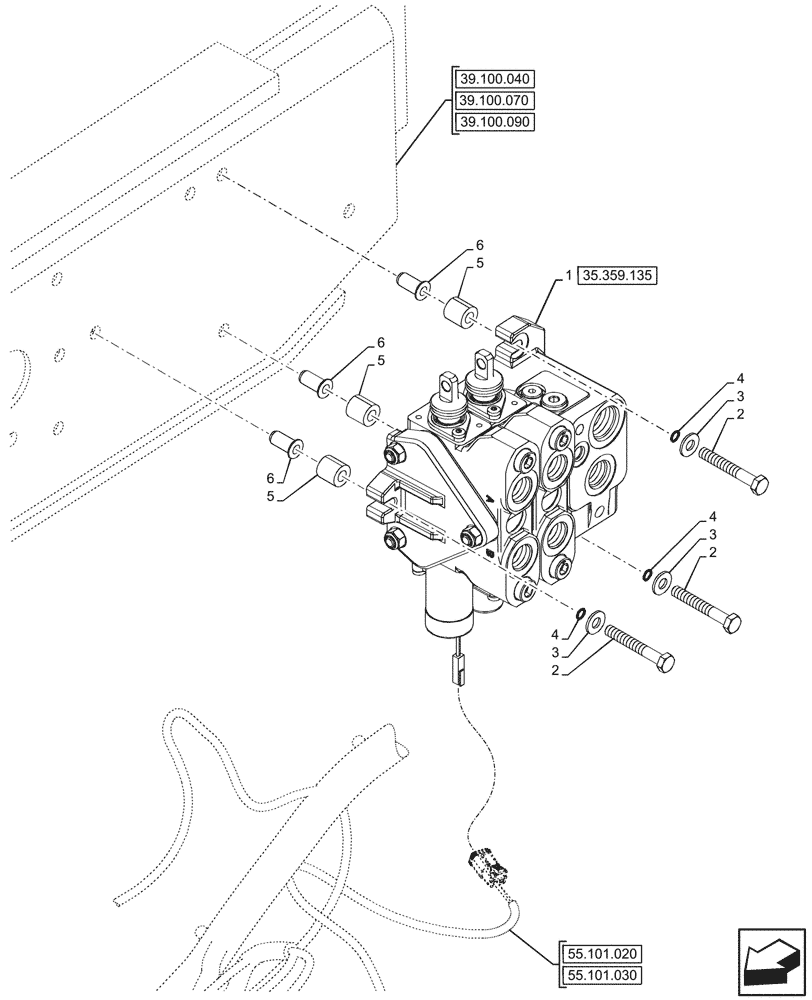

Схема запчастей Case 580SN - (35.359.130) - LOADER, CONTROL VALVE, PILOT CONTROLS, 2-SPOOL, MOUNTING (35) - HYDRAULIC SYSTEMS
35.359.135
5
5
4
4
5
6
6
3
2
2
3
2
1
4
6
3
55.101.020
39.100.040
39.100.070
39.100.090
55.101.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84219975

VALVE

ASSY, Loader 2-Spool

1шт.

2

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

3шт.

3

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

4

86629543

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

3шт.

5

87585960

SPACER,11mm ID x 22mm OD x 22mm L

3шт.

6

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

3шт.

Выбрано товаров: 6
