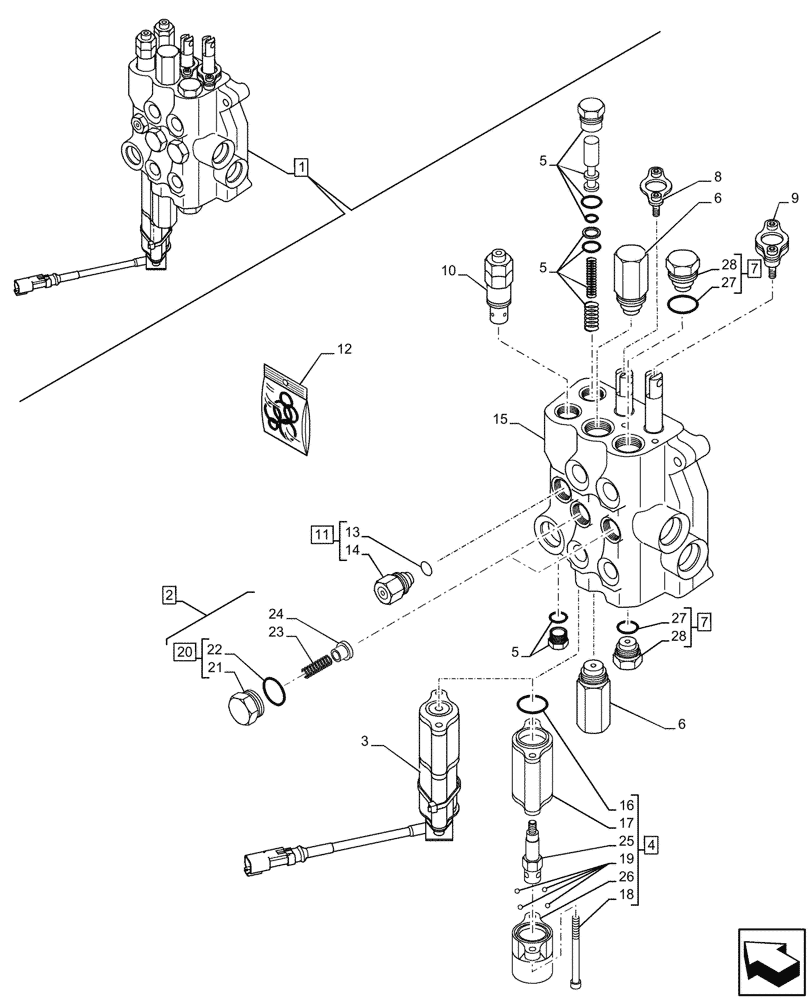

Запчасти Case 580SN (35.359.125) - LOADER, CONTROL VALVE, MECHANICAL, 2-SPOOL, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47907468

VALVE

ASSY, Loader, 2-Spool, W/ Full Flow Priority, Incl 2 - 28

1шт.

2

87426238

VALVE, CHECK

ASSY, Incl 20 - 24

2шт.

3

84296814

KIT

Magnetic Detent Group

1шт.

4

87426227

DETENT

ASSY, Incl 16 - 19, 25, 26

1шт.

5

84296863

KIT

Mechanical Priority End Group

1шт.

6

84296801

VALVE PRESSURE RELIE,1-1/4" - 12

2шт.

7

81868381

CHECK VALVE,1-1/16" - 12

ASSY, Anti Void, Incl 27, 28

2шт.

8

84315193

SEAL

Plate

1шт.

9

84327674

KIT

Seal Plate

1шт.

10

84296864

VALVE PRESSURE RELIE,7/8" - 14

1шт.

11

163410

PLUG,1-1/16" - 12 ORB

ASSY, Incl 13, 14

1шт.

12

84296788

SEAL KIT

Mechanical Loader Control Valve

1шт.

13

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

NSS

NOT SOLD SEPARAT

Plug, Incl in 11

1шт.

15

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

16

87454547

O-RING

1шт.

17

NSS

NOT SOLD SEPARAT

Endcap, Incl in 4

1шт.

18

87310275

SCREW

2шт.

19

87310276

BALL BEARING

4шт.

20

87455581

PLUG,Hex, 1/16" - 12 ORB

ASSY, Incl 21, 22

2шт.

21

87455975

O-RING

2шт.

22

NSS

NOT SOLD SEPARAT

Plug, Incl in 20

2шт.

23

87455582

SPRING

2шт.

24

NSS

NOT SOLD SEPARAT

Load Check, Incl in 2

2шт.

25

NSS

NOT SOLD SEPARAT

Spool End, Incl in 4

1шт.

26

NSS

NOT SOLD SEPARAT

Spool Cap, Incl in 4

1шт.

27

87455580

O-RING KIT

Backhoe Control Valve, Anti-Void Check Valve

2шт.

28

NSS

NOT SOLD SEPARAT

Check Valve, Incl in 7

2шт.
