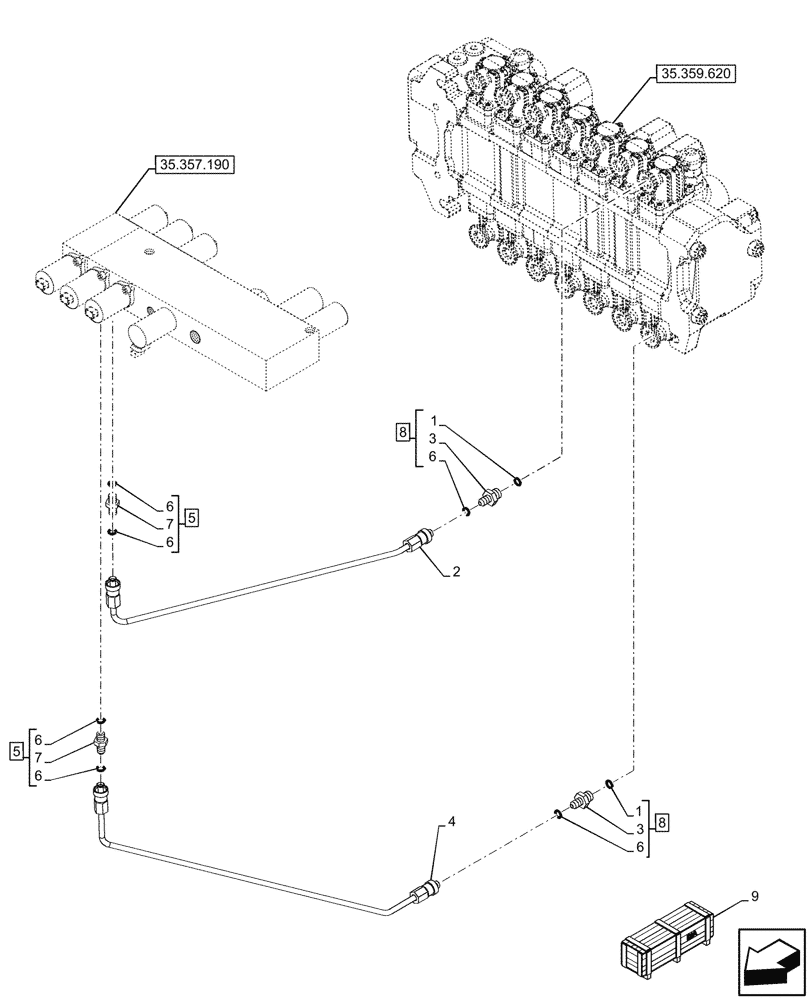

Запчасти Case 580SN (35.357.260) - 7-SPOOL, PRESSURE CONTROL VALVE, LINE, STANDARD DIPPER, W/ PILOT CONTROLS, W/DBL AUX (35) - HYDRAULIC SYSTEMS

1

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

2

87438015

HYD TUBE

from Reducing Valve to AUX A 7 Spool

1шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

2шт.

4

87438012

HYD TUBE

from Reducing Valve to AUX 7 Spool

1шт.

5

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ASSY, Incl 6 (Qty 2), 7

2шт.

6

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

2шт.

8

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ASSY, Incl 1, 3, 6 (Qty 2)

2шт.

9

47501543

CONSTRUCTION DIA

No Auxiliary to Combo, Standard Dipper, Pilot Control, Incl 1 - 8

1шт.

Valid for 580SN NRC Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

9

47501544

CONSTRUCTION DIA

No Auxiliary to Combo, Standard Dipper, Pilot Control, Incl 1 - 8

1шт.

Valid for 590SN NRC Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

9

47661908

CONSTRUCTION DIA

Uni-Auxiliary to Combo, Incl 1 - 8

1шт.

Valid for 580SN (Livery) NRC, 590SN (Livery) NRC Models Only, W/ Standard Transmission and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
