(35.357.110) - VAR - 423078 - BACKHOE ARM, PILOT CONTROLS, LINE

Запчасти Case 580SN (35.357.110) - VAR - 423078 - BACKHOE ARM, PILOT CONTROLS, LINE (35) - HYDRAULIC SYSTEMS

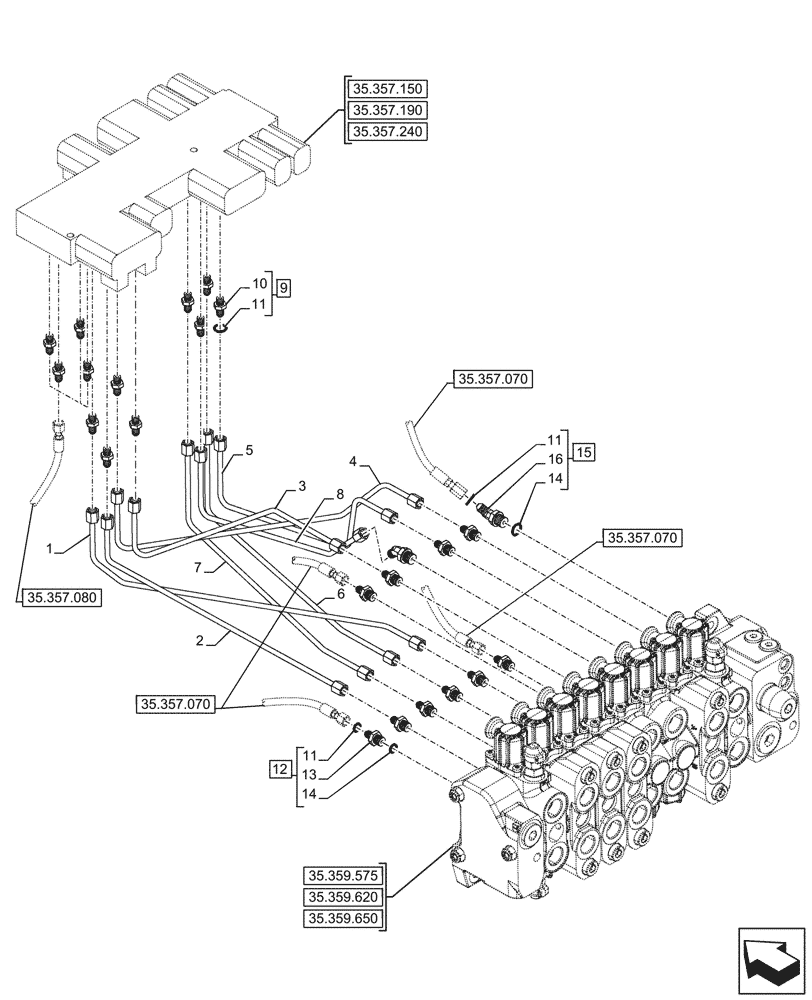

Схема запчастей Case 580SN - (35.357.110) - VAR - 423078 - BACKHOE ARM, PILOT CONTROLS, LINE (35) - HYDRAULIC SYSTEMS
35.357.150
16
6
13
2
14
4
11
8
5
9
7
1
3
10
14
12
11
11
15
35.357.190
35.357.080
35.359.575
35.357.240
35.357.070
35.357.070
35.357.070
35.359.620
35.359.650
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87439213

HYD TUBE

Selector A3 to Boom B

1шт.

2

87437621

TUBE,.25" OD

Selector A1 to Dipper B

1шт.

3

87437623

TUBE,.25" OD

Selector A2 to Dipper A

1шт.

4

87439215

HYD TUBE

Selector A4 to Boom A

1шт.

5

87437627

HYD TUBE

Reducing Valve to LH Stabilizer A

1шт.

6

87437625

HYD TUBE

Reducing Valve to LH Stabilizer B

1шт.

7

87437629

HYD TUBE

Reducing Valve to RH Stabilizer B

1шт.

8

87445557

HYD TUBE

Reducing Valve to RH Stabilizer A

1шт.

9

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ASSY, Incl 10, 11, Incl 10, 11 (Qty 12)

12шт.

10

NSS

NOT SOLD SEPARAT

Connector, Incl in 9, Incl in 9

12шт.

11

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

24шт.

12

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ASSY, Incl 11, 13, 14, Incl 11 (Qty 10), 13, 14 (Qty 10)

10шт.

13

NSS

NOT SOLD SEPARAT

Connector, Incl in 12, Incl in 12

10шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

12шт.

15

218-5365

ELBOW,45 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

ASSY, Incl 11, 14, 16, Incl 11 (Qty 2), 14 (Qty 2), 16

2шт.

16

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 15, Incl in 15

2шт.
