(35.300.090) - OIL FILTER, LINE

Запчасти Case 580SN (35.300.090) - OIL FILTER, LINE (35) - HYDRAULIC SYSTEMS

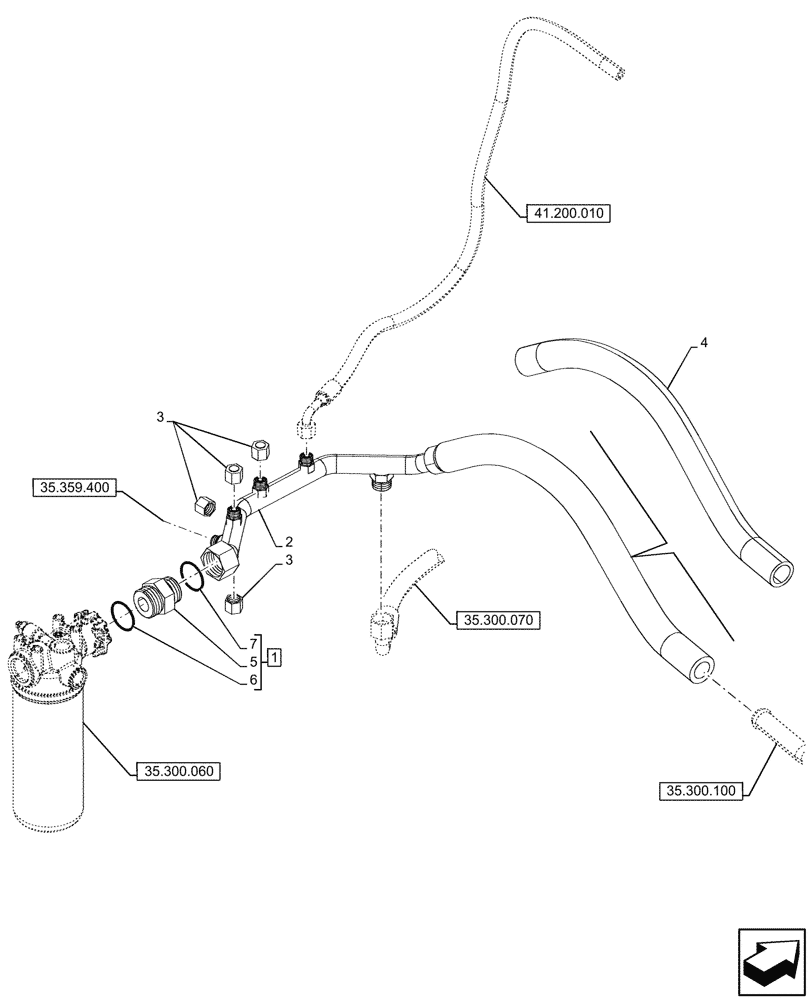

Схема запчастей Case 580SN - (35.300.090) - OIL FILTER, LINE (35) - HYDRAULIC SYSTEMS
35.300.100
5
3
2
3
1
6
4
7
35.300.070
41.200.010
35.359.400
35.300.060
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

9847247

HYD CONNECTOR,1 7/16"-12 ORFS x 1 5/8"-12 ORB

ASSY, Incl 5 - 7

1шт.

2

48012461

HYD TUBE

Manifold Return

1шт.

3

87331950

CAP ASSY.,Hex, 11/16"-16

4шт.

4

87656501

HOSE PROTECTION,340.00 mm ID x 540.00 mm

1шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 1

1шт.

6

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

7

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.
