(35.300.060) - OIL FILTER

Запчасти Case 580SN (35.300.060) - OIL FILTER (35) - HYDRAULIC SYSTEMS

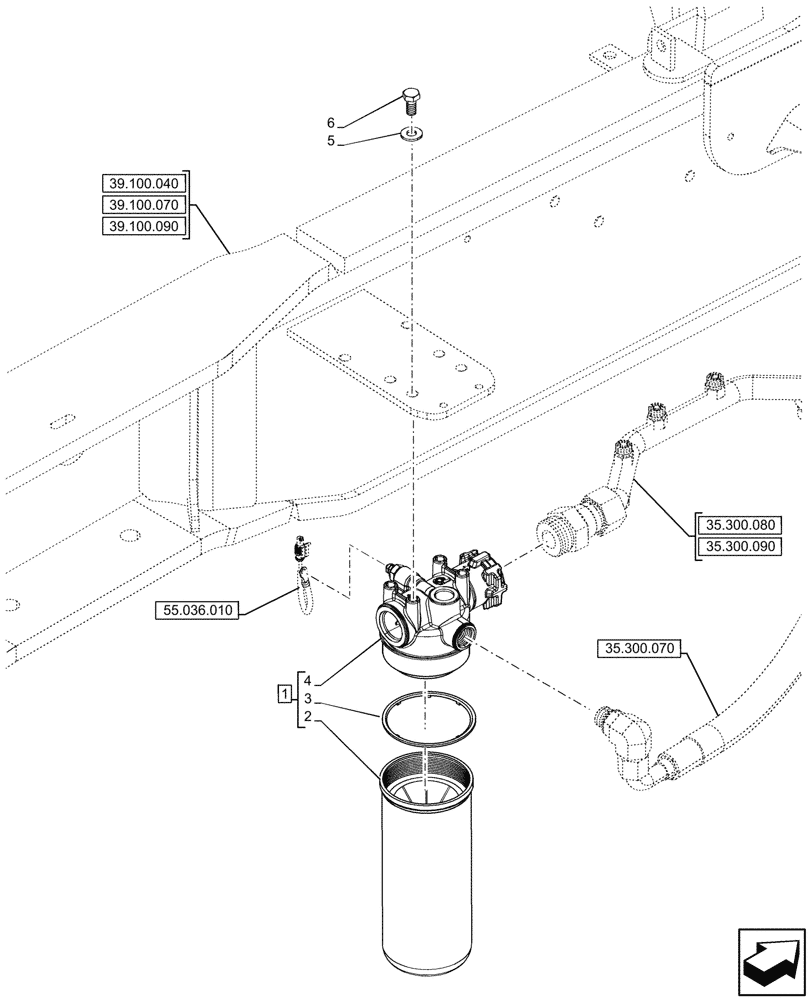

Схема запчастей Case 580SN - (35.300.060) - OIL FILTER (35) - HYDRAULIC SYSTEMS
39.100.090
2
5
1
4
6
3
35.300.070
35.300.080
35.300.090
39.100.040
55.036.010
39.100.070
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47833568

HYDRAULIC OIL FILTER

ASSY, Incl 2 - 4

1шт.

2

47833556

HYDRAULIC OIL FILTER,98.8mm OD x 239.8mm L x 500 Microns

1шт.

3

84274694

WEAR RING,3.45" ID x 3.94" OD x 0.05" Thk

1шт.

4

NSS

NOT SOLD SEPARAT

Head Filter, Incl in 1

1шт.

5

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

6

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.
