(35.106.130) - LOADER, HYDRAULIC PUMP, CONTROL VALVE, MECHANICAL, 2-SPOOL, LINE

Запчасти Case 580SN (35.106.130) - LOADER, HYDRAULIC PUMP, CONTROL VALVE, MECHANICAL, 2-SPOOL, LINE (35) - HYDRAULIC SYSTEMS

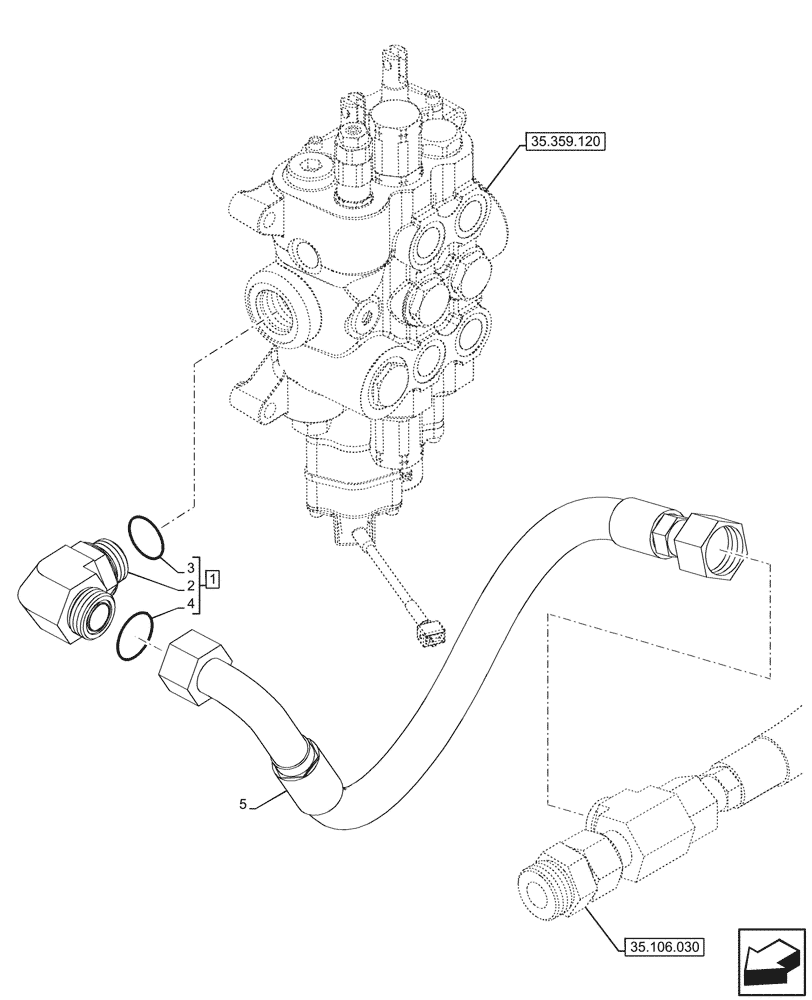

Схема запчастей Case 580SN - (35.106.130) - LOADER, HYDRAULIC PUMP, CONTROL VALVE, MECHANICAL, 2-SPOOL, LINE (35) - HYDRAULIC SYSTEMS
35.359.120
5
2
3
1
4
35.106.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

9846955

90 ELBOW,1-7/16"-12 ORFS x 1-5/16"-12 ORB

ASSY, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 1

1шт.

3

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

5

84245419

HOSE ASSY.,19.05mm ID x 678.4mm L, SAE 100R16

Pump to Loader Valve

1шт.
