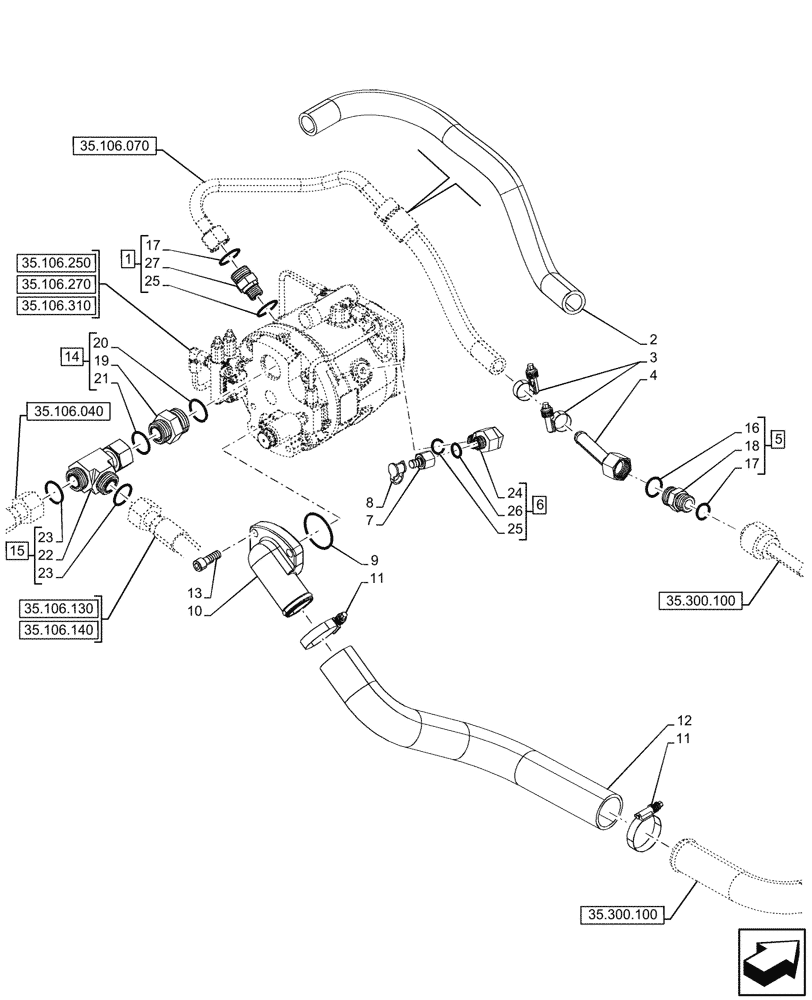

Запчасти Case 580SN (35.106.030) - OIL PUMP & LINES, FITTING (35) - HYDRAULIC SYSTEMS

1

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

ASSY, Incl 17 (Qty 1), 25 (Qty 1), 27

1шт.

2

87656501

HOSE PROTECTION,340.00 mm ID x 540.00 mm

1шт.

3

277678A1

CLAMP,Constant Torque 1 1/8 Inch

2шт.

4

47375879

TUBE

Pump Return

1шт.

5

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 16, 17 (Qty 1), 18

1шт.

6

85802961

ELBOW,13/16"-16 UN-2A x 7/8"-14 UNF-2A

ASSY, Incl 24, 25 (Qty 1), 26

1шт.

7

322529A1

COUPLING

Diagnostic

1шт.

8

H434163

DUST CAP

1шт.

9

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

10

87727923

FLANGE

1шт.

11

259044A1

CLAMP

2шт.

12

87729268

HOSE,50.800 mm ID x 421.50 mm, SAE 30R7

Pump Suction

1шт.

13

864-12035

HEX SOC SCREW,M12 x 35mm, Cl 8.8

3шт.

14

9847247

HYD CONNECTOR,1 7/16"-12 ORFS x 1 5/8"-12 ORB

ASSY, Incl 19 - 21

1шт.

15

201-418

TEE,1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS

ASSY, Incl 22, 23

1шт.

16

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

17

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

18

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

19

NSS

NOT SOLD SEPARAT

Connector, Incl in 14

1шт.

20

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

21

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

22

NSS

NOT SOLD SEPARAT

Tee, Incl in 15

1шт.

23

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

24

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 6

1шт.

25

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

26

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

27

NSS

NOT SOLD SEPARAT

Connector, Incl in 1

1шт.
